Custom Heatpipe Coolers for Power and Embedded Systems

CUSTOM THERMAL ASSEMBLIES

Custom Heatpipe Cooling Modules

Hongming Sheng manufactures custom heatpipe heat sink assemblies around your heat source layout, available space and mechanical requirements.

From compact baseplate arrangements to multiple heatpipes, fin stacks and fan-assisted modules, we support customized assemblies for electronics, power conversion and industrial equipment.

DISCUSS YOUR COOLING LAYOUT info@hms1688.com Request a Cooling Module Quote

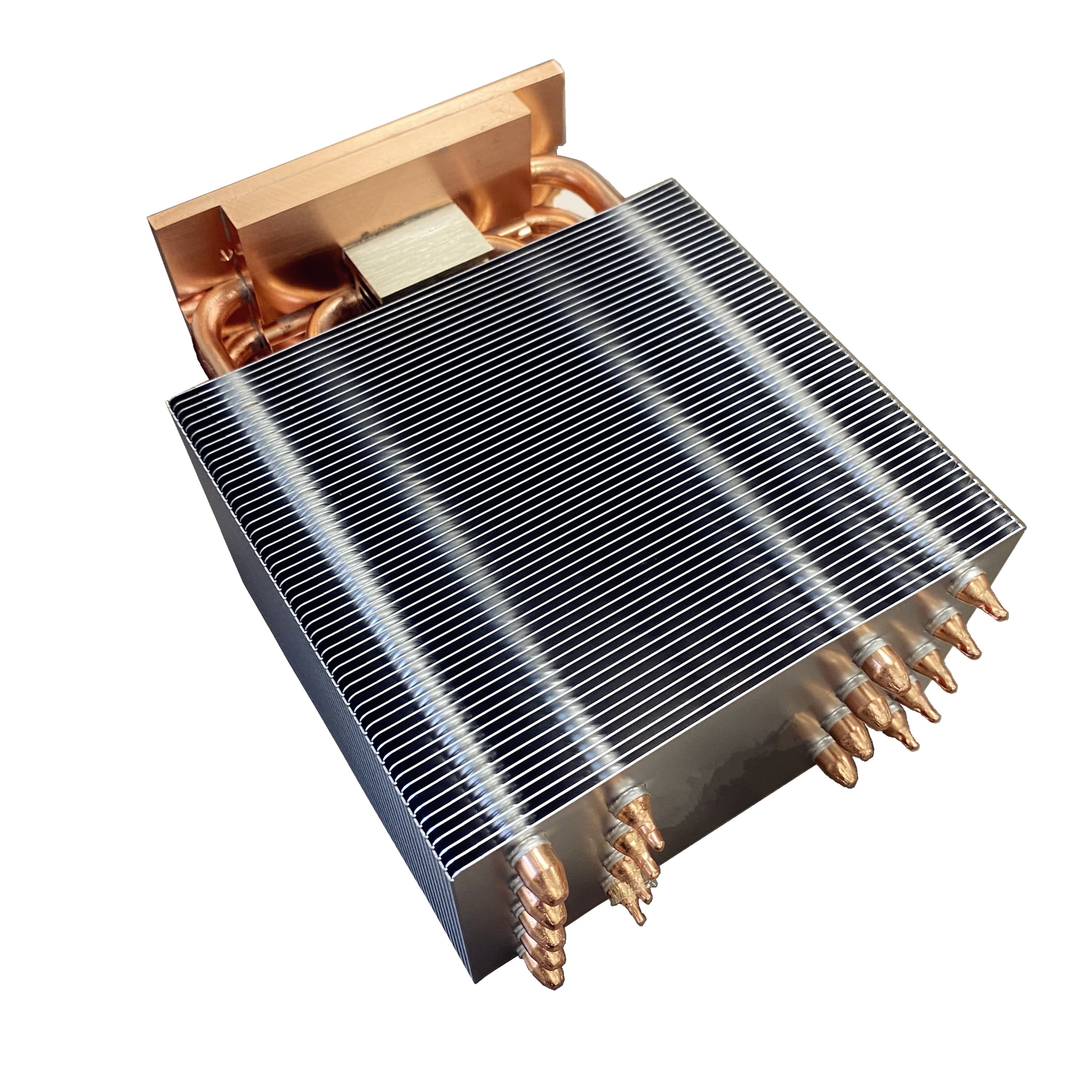

Rectangular heatpipe heat sink with a fin stack and copper base section — Multi-Heatpipe Fin Assembly

Heatpipe & Fin Assembly Examples

Different layouts for your equipment. Select an image to view it at full size.

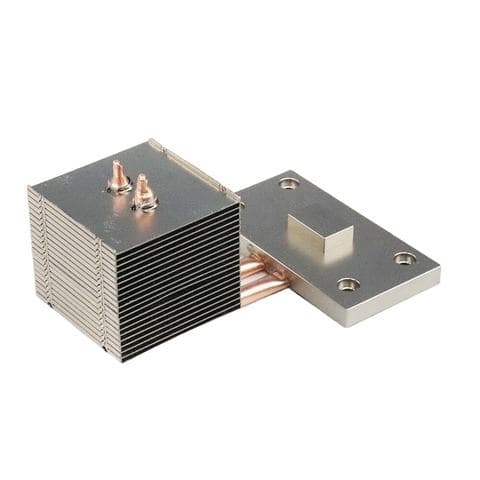

Heatpipe assembly connecting a mounting baseplate to a fin stack — Baseplate & Fin Stack

Curved fin heat sink assembly with multiple copper heatpipes — Curved Fin Assembly

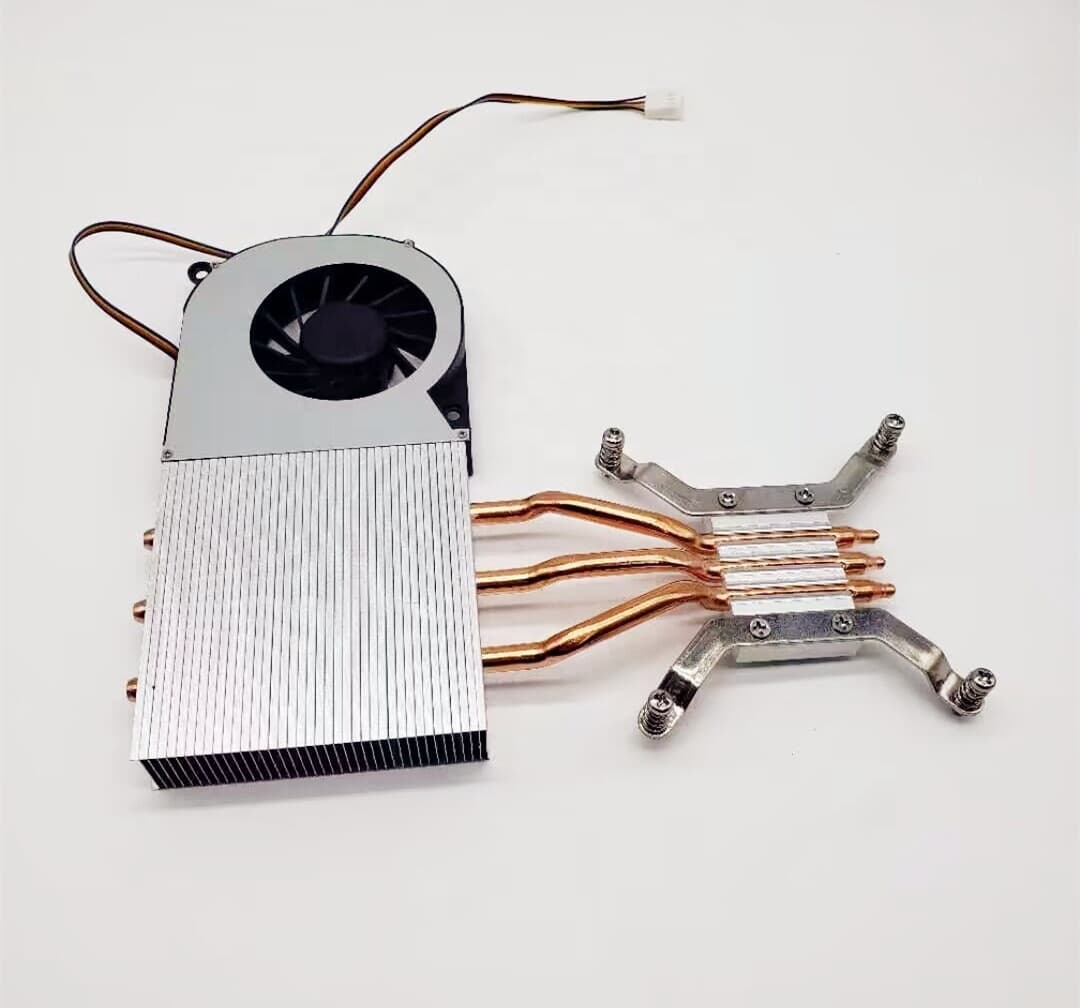

Cooling module with a blower fan, heatpipes, fin stack and mounting bracket — Fan-Assisted Module

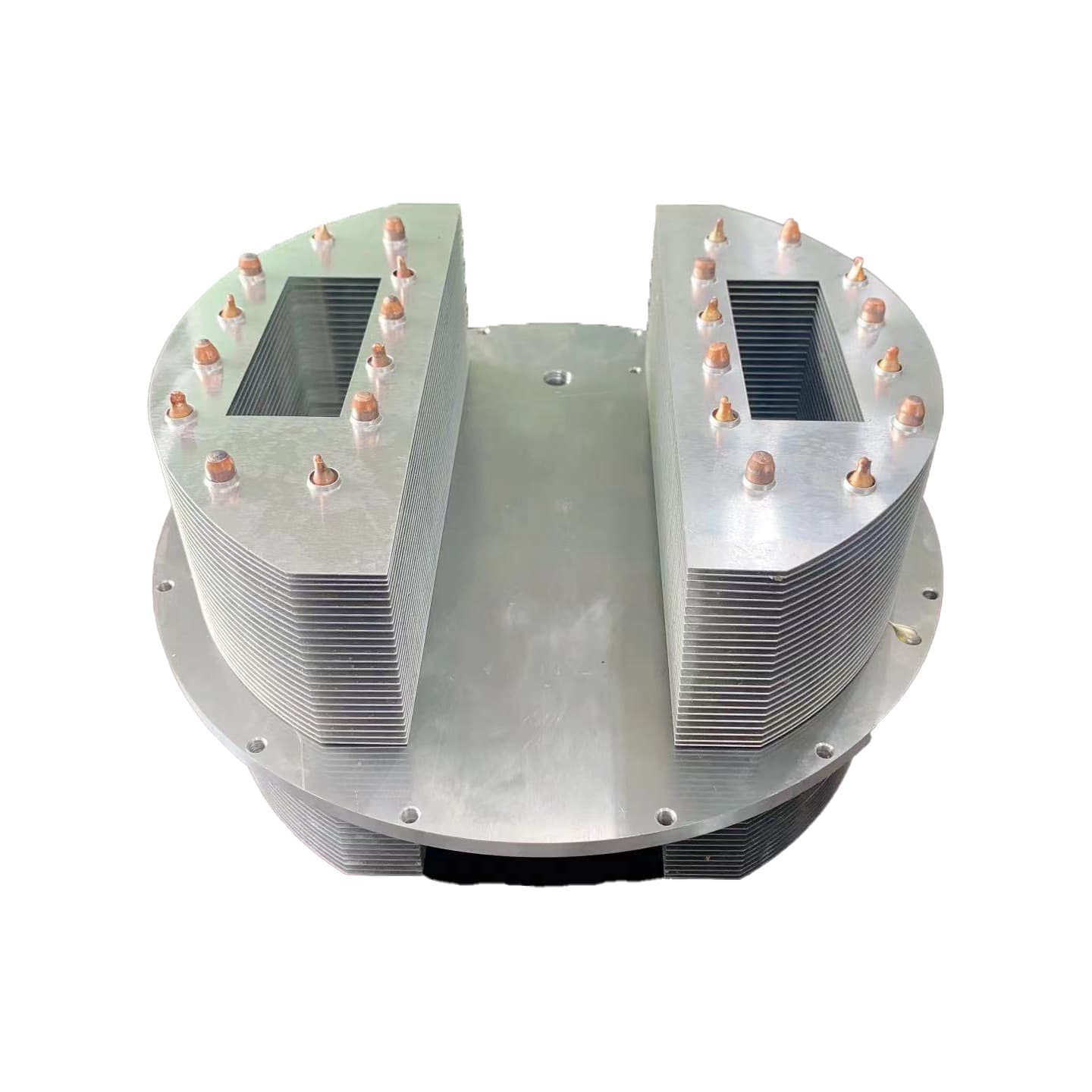

Split fin heatpipe assembly on a circular mounting base — Split Fin Assembly

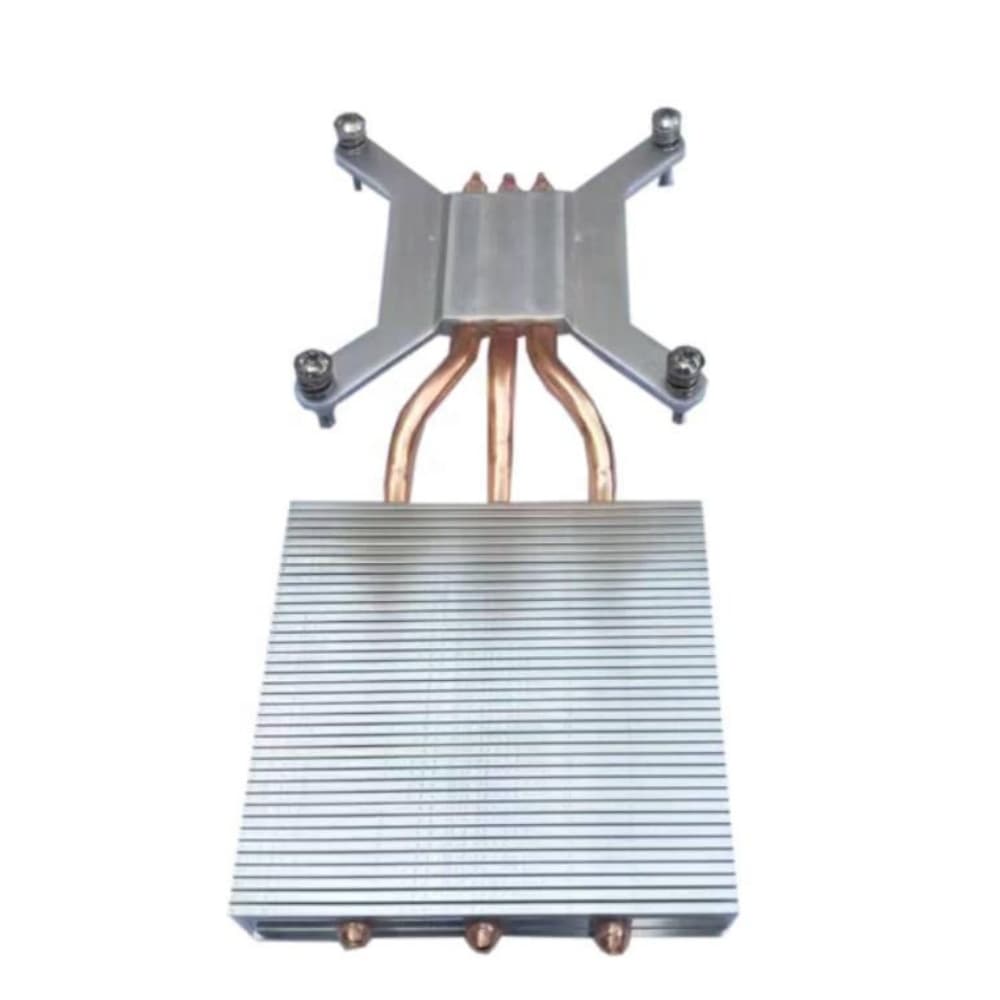

Heatpipe fin module with a mounting bracket and spring fasteners — Bracket-Mounted Module

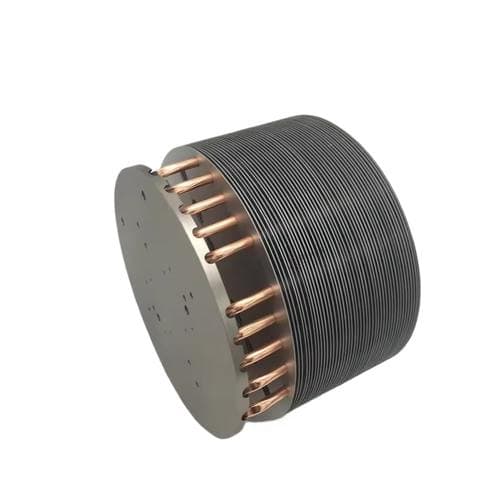

Compact heatpipe cooling unit with a fin block and mounting structure — Compact Heatpipe Unit

Configure the Module Around Your Hardware

Define the arrangement together with your mechanical drawing.

Heatpipe Arrangement: Flat arrays, multiple heatpipes, U-shaped routes or curved layouts according to the available space.
Base & Fin Structure: Aluminum or copper baseplates with stacked, curved or radial fin arrangements suited to the project layout.
Fan & Mounting: Fan-assisted modules, custom mounting brackets and mechanical interfaces defined by your equipment design.
Split Fin Designs: Dual-sided or separated fin arrangements when required by the heat source and enclosure layout.

From Layout Review to Finished Assembly

Manufacturing support for your custom cooling module.

Review the Layout

Review CAD files, heat source positions, installation space and mounting requirements.
Manufacture the Parts

CNC machining, heatpipe forming or flattening, fin preparation and assembly according to the agreed process.
Coordinate Integration

Check fan, bracket and mechanical interfaces together with the specified inspection requirements.

Inspection, thermal validation and acceptance requirements are agreed for each project.

Share Your Cooling Requirements

A clear project brief helps us review the assembly for quotation.

Thermal concept or heat source layout
Available space and mounting dimensions
Base, fin, fan and surface requirements
Mechanical drawing, CAD file or sample reference
Quantity and assembly details

Customer drawings, CAD files and technical specifications are treated as confidential. NDA support is available for custom OEM projects.
