Large Heatpipe Fin Assemblies for High-Power Thermal Management

Need powerful air-cooled thermal solutions for your high-power components? Our factory designs and produces large-format heatpipe fin heat sinks using multiple high-efficiency copper heatpipes, precision aluminum fins, and robust base plates—built for serious heat dissipation in demanding applications.

These assemblies offer both structural strength and thermal reliability, using soldered or press-fitted pipes with optimized fin stack layouts to enhance airflow and cooling surface area.

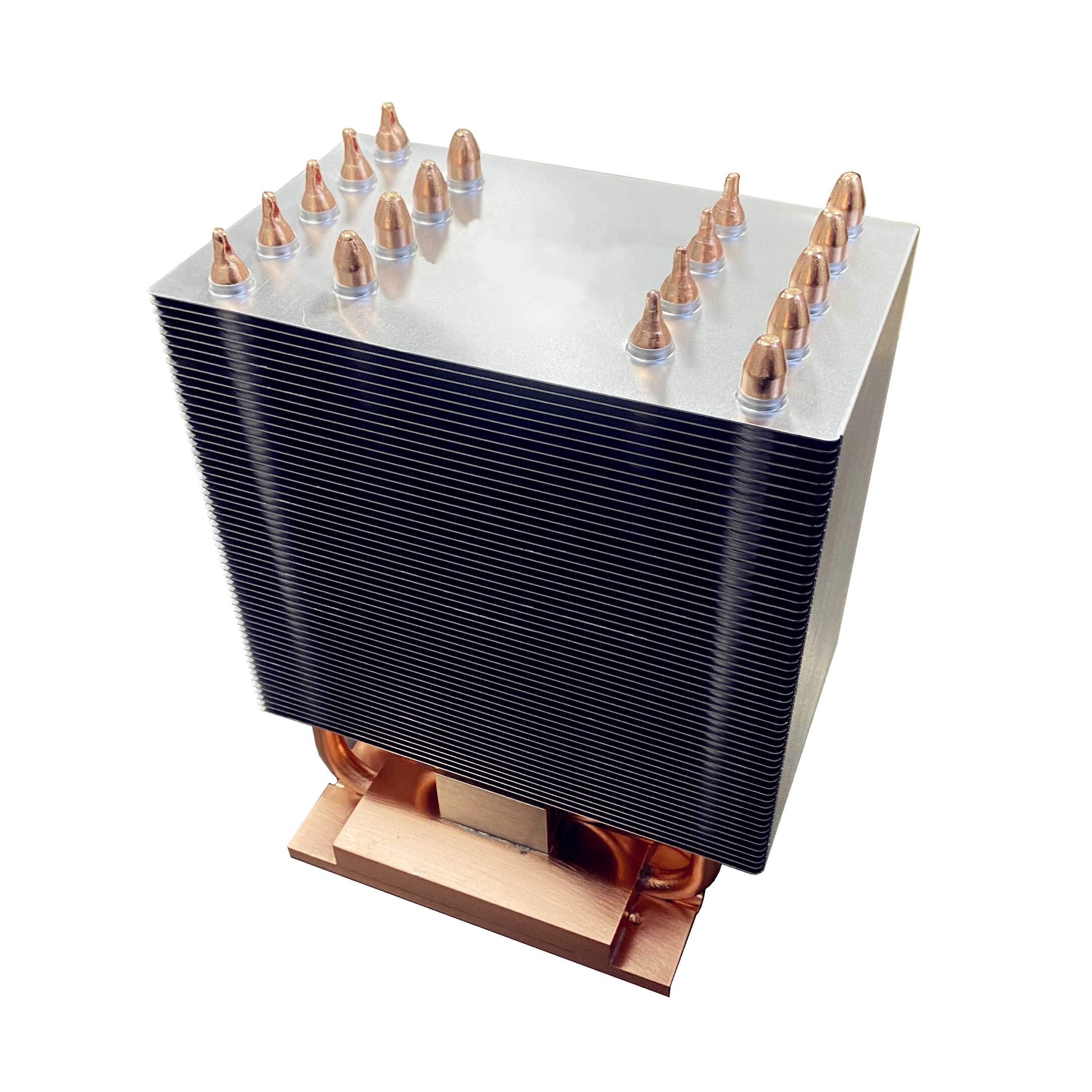

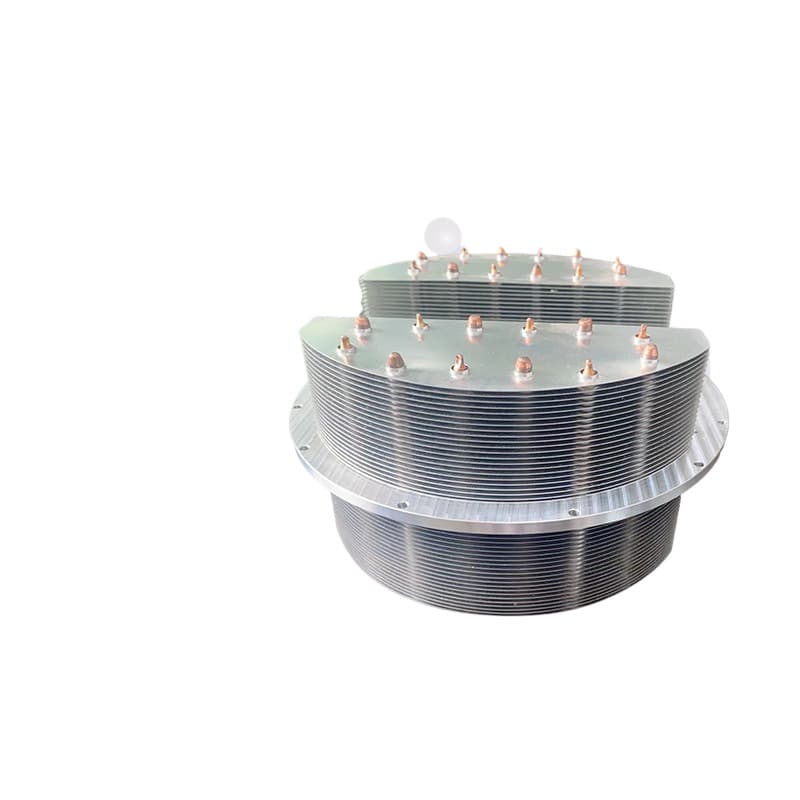

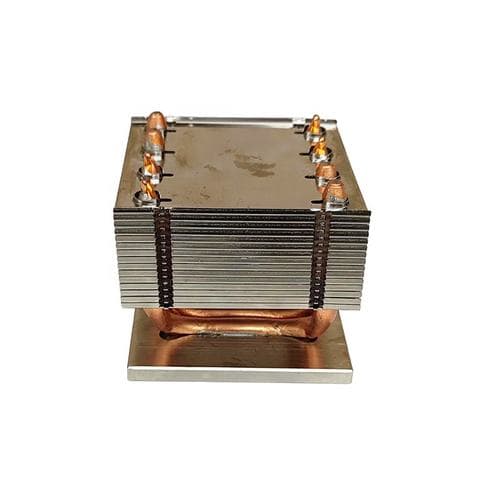

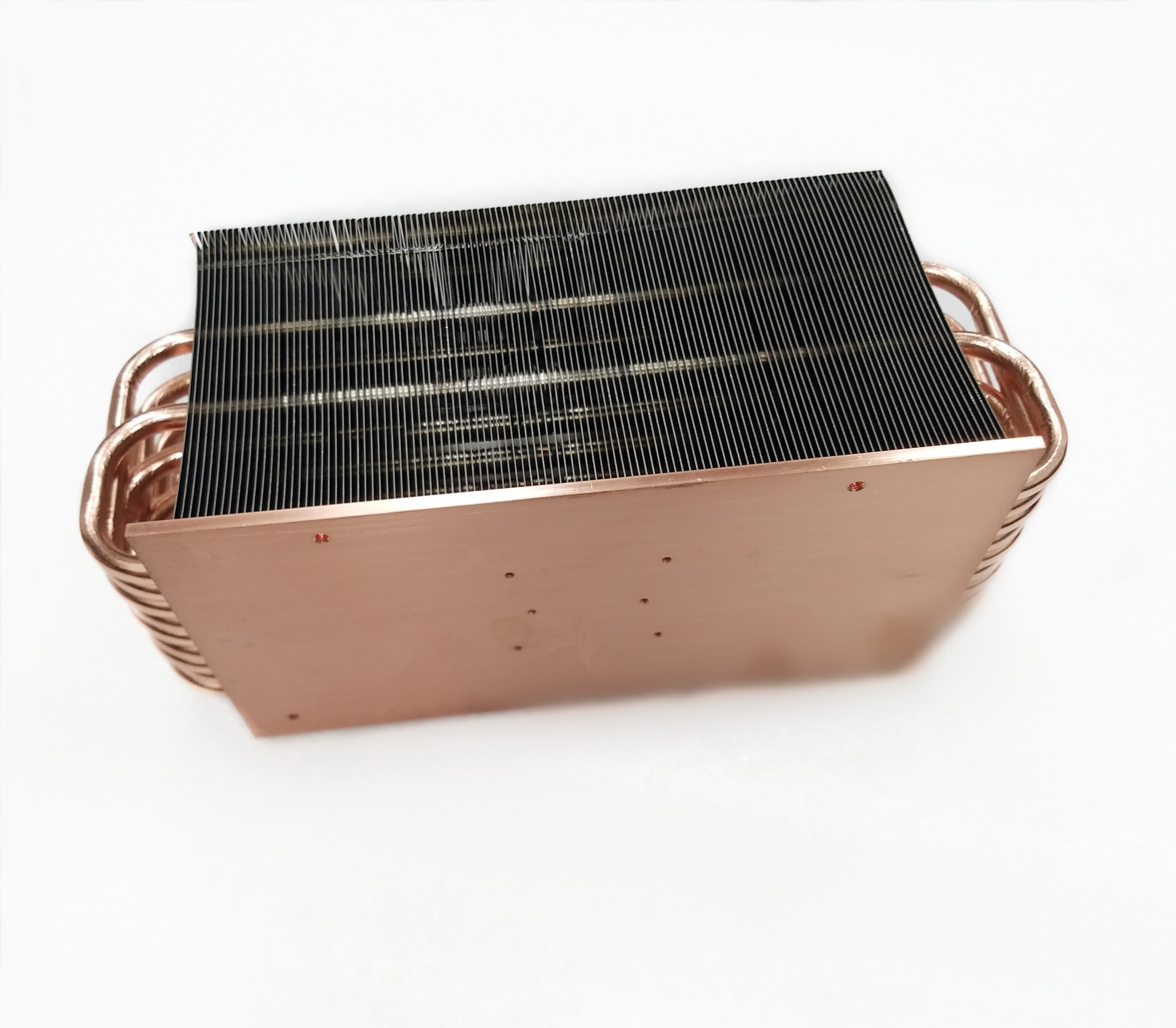

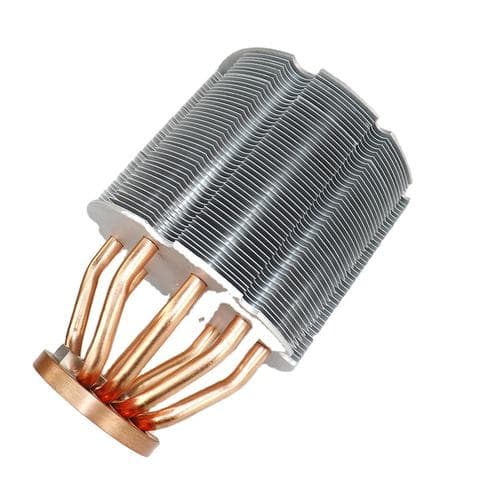

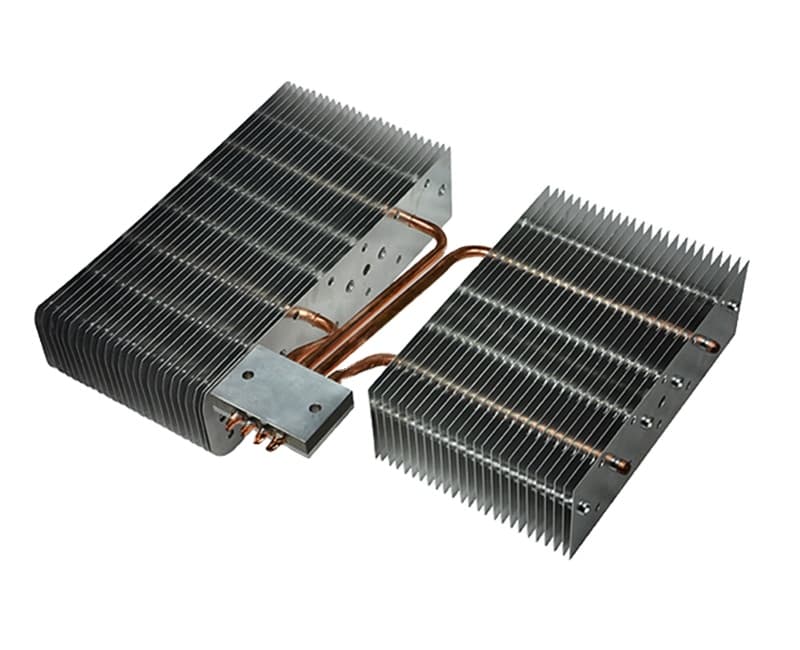

Product Gallery – Real Heatpipe Fin Assemblies

Key Features of Our Heatpipe Assemblies

→ Multiple copper heatpipes (4–16 pcs) embedded or soldered
→ Dense fin arrays for optimal convection heat transfer
→ Custom-shaped bases: square, circular, offset, or split-core
→ Optional nickel plating, anodizing, or black oxidation
→ Supports vertical or horizontal mounting in enclosures

Applications Across Industries

→ Telecom base stations and high-frequency amplifiers
→ High-power inverters and IGBT modules
→ Industrial laser machines and medical equipment
→ Power supply units and server cooling modules

OEM Support and Fabrication Services

We offer complete engineering support, from thermal analysis to custom layout design. Whether you require 1 sample or 10,000 units, our team delivers consistent quality, tight assembly tolerances, and full inspection before shipment.

→ Thermal simulation and DFM evaluation
→ CNC base machining and pipe routing optimization
→ Soldering, epoxy bonding, and leak testing
→ ISO-compliant production and export packaging

Need a heavy-duty cooling solution built for long-term performance?

Just upload your design or thermal specs—we’ll respond within 24 hours.
