CATEGORIESCarbon Fiber Machining Examples

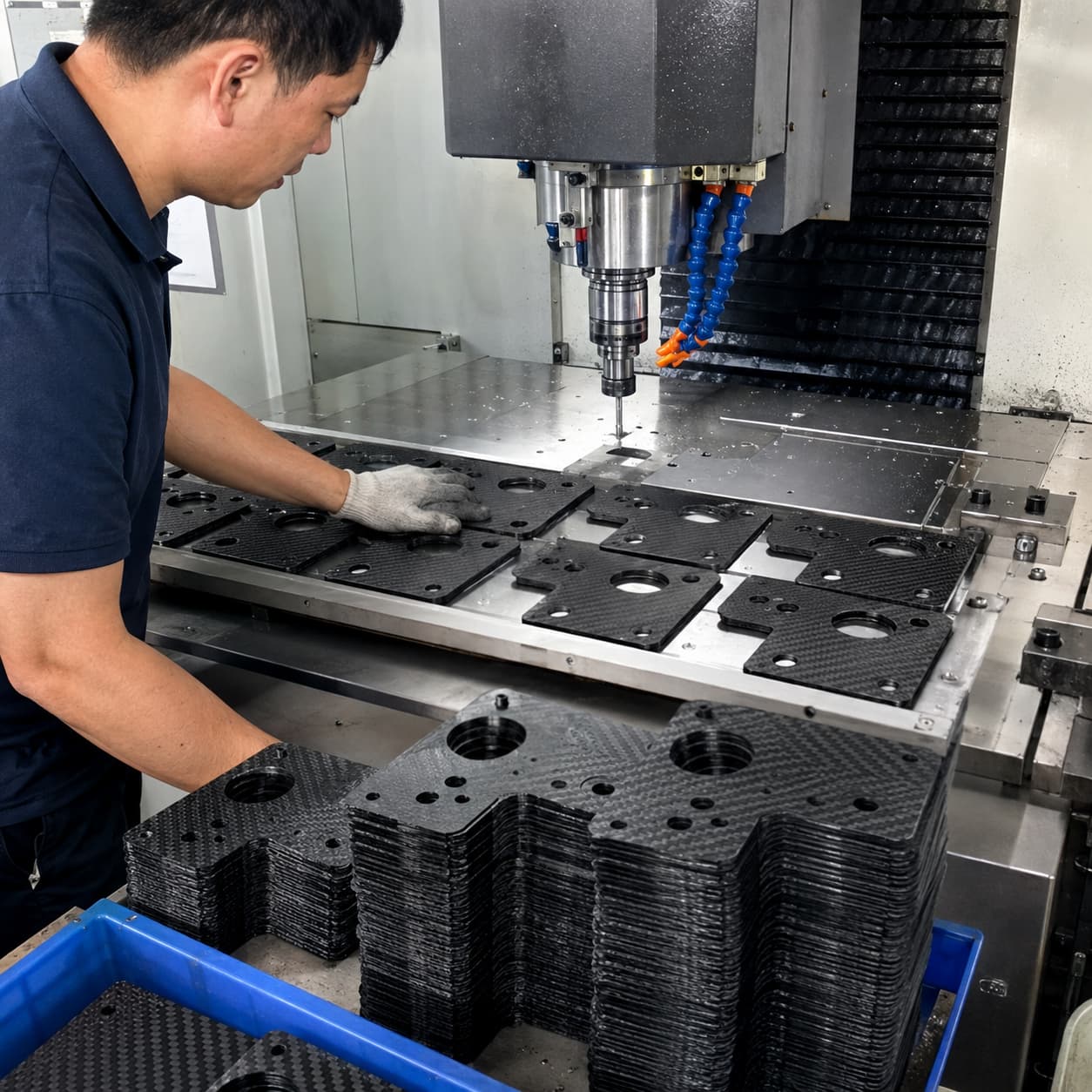

Hongming Sheng provides carbon fiber CNC machining and fabrication according to customer drawings and 3D models.

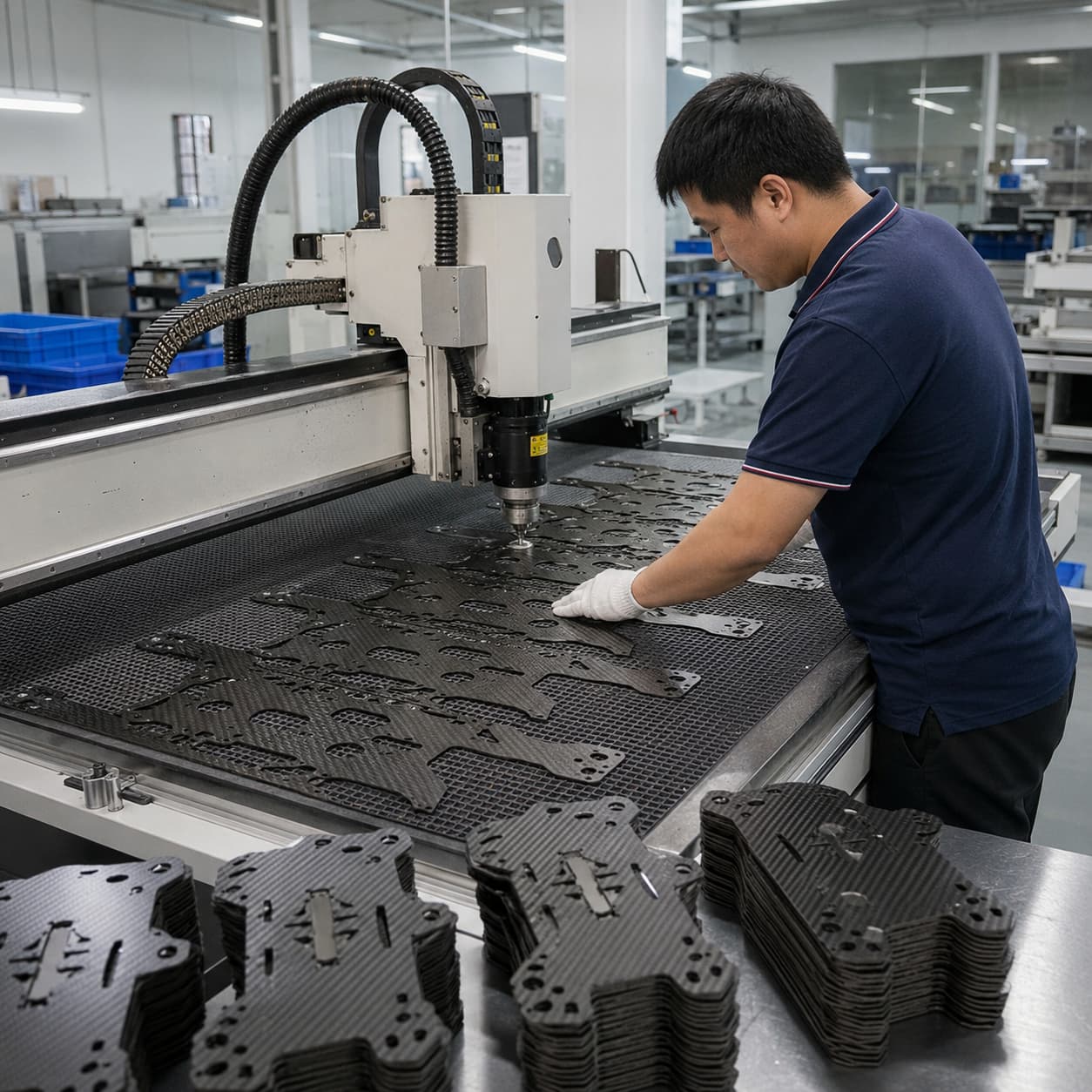

We support CNC cutting, trimming, drilling, edge finishing, dimensional inspection and assembly for prototype and batch production.

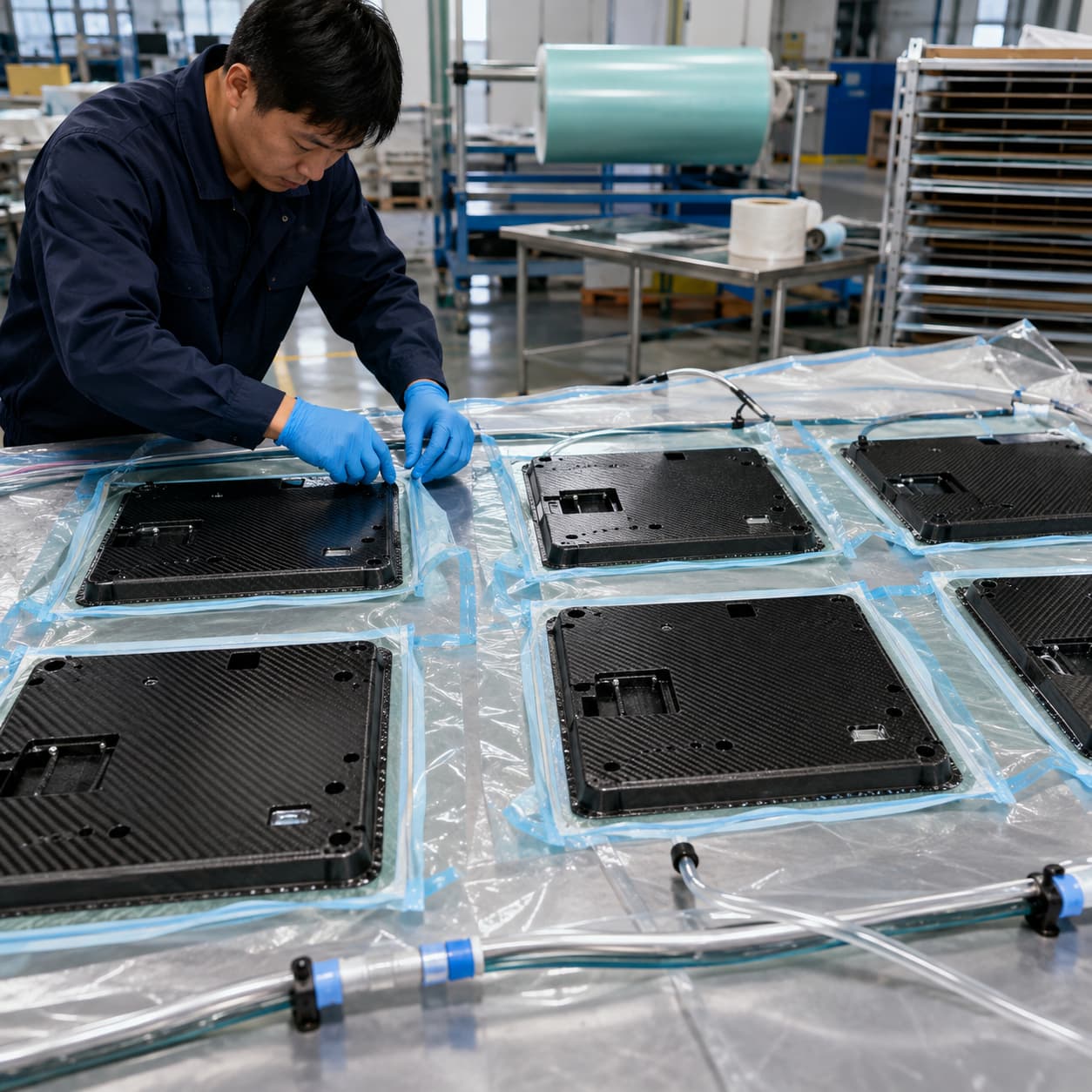

Carbon fiber components may require secondary machining after forming. We machine the final profiles, openings and mounting features according to approved CAD files and drawings.
| Profiles & Cut-Outs | Profile contours and custom cut-outs matching the customer CAD geometry. |
| Holes & Slots | Drilled holes, slots and mounting features for assembly. |

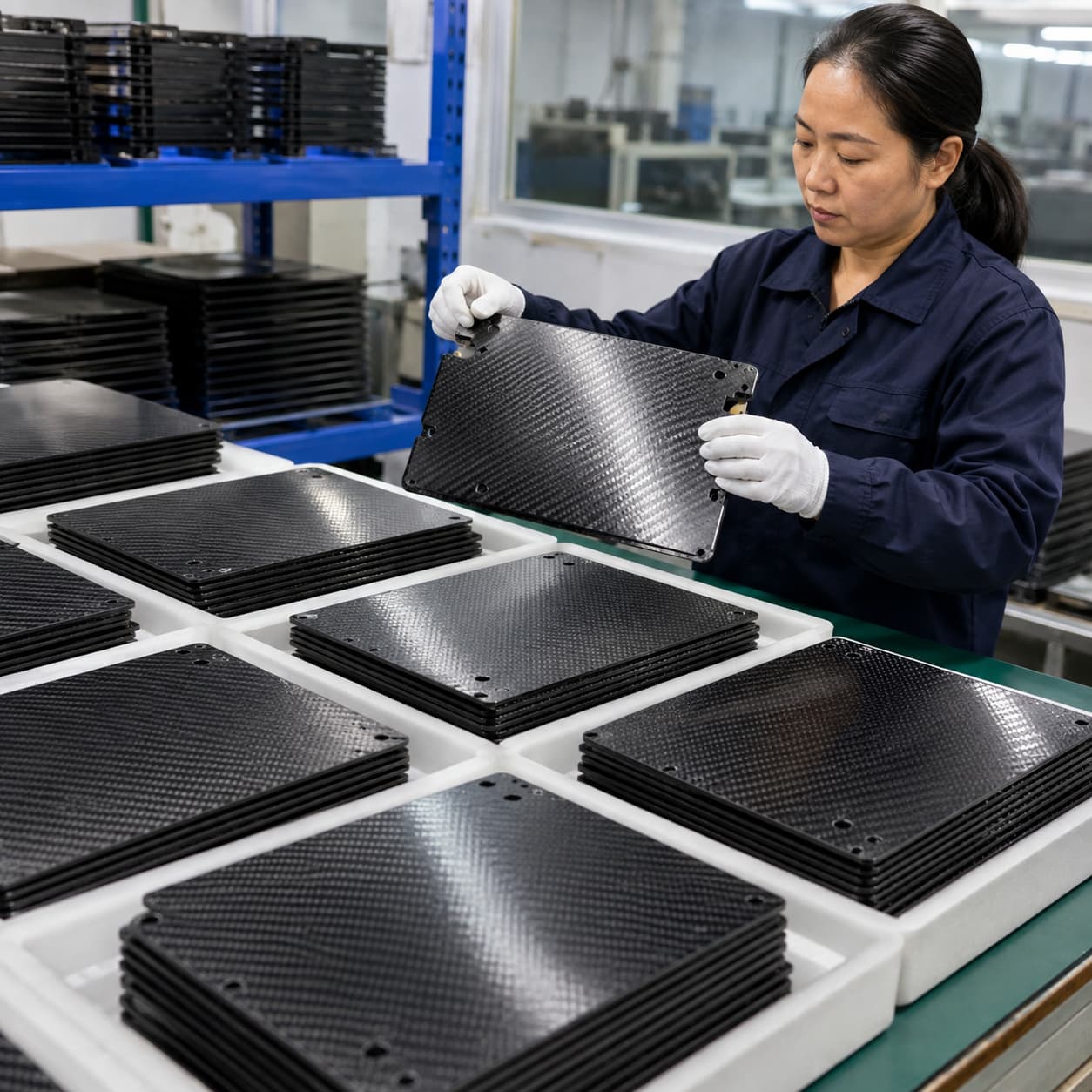

| Trimming & Edges | Outline trimming and edge machining following drawing requirements. |

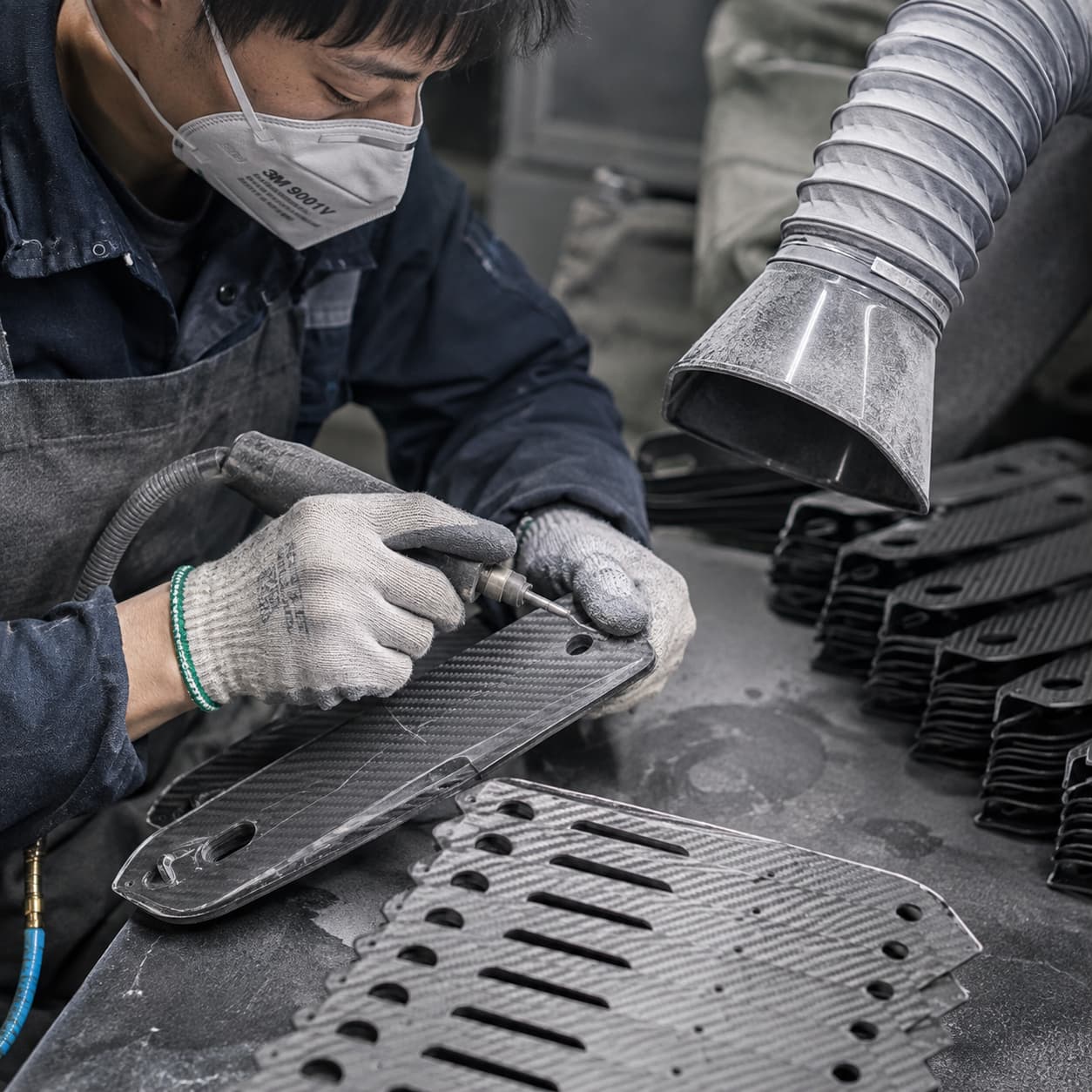

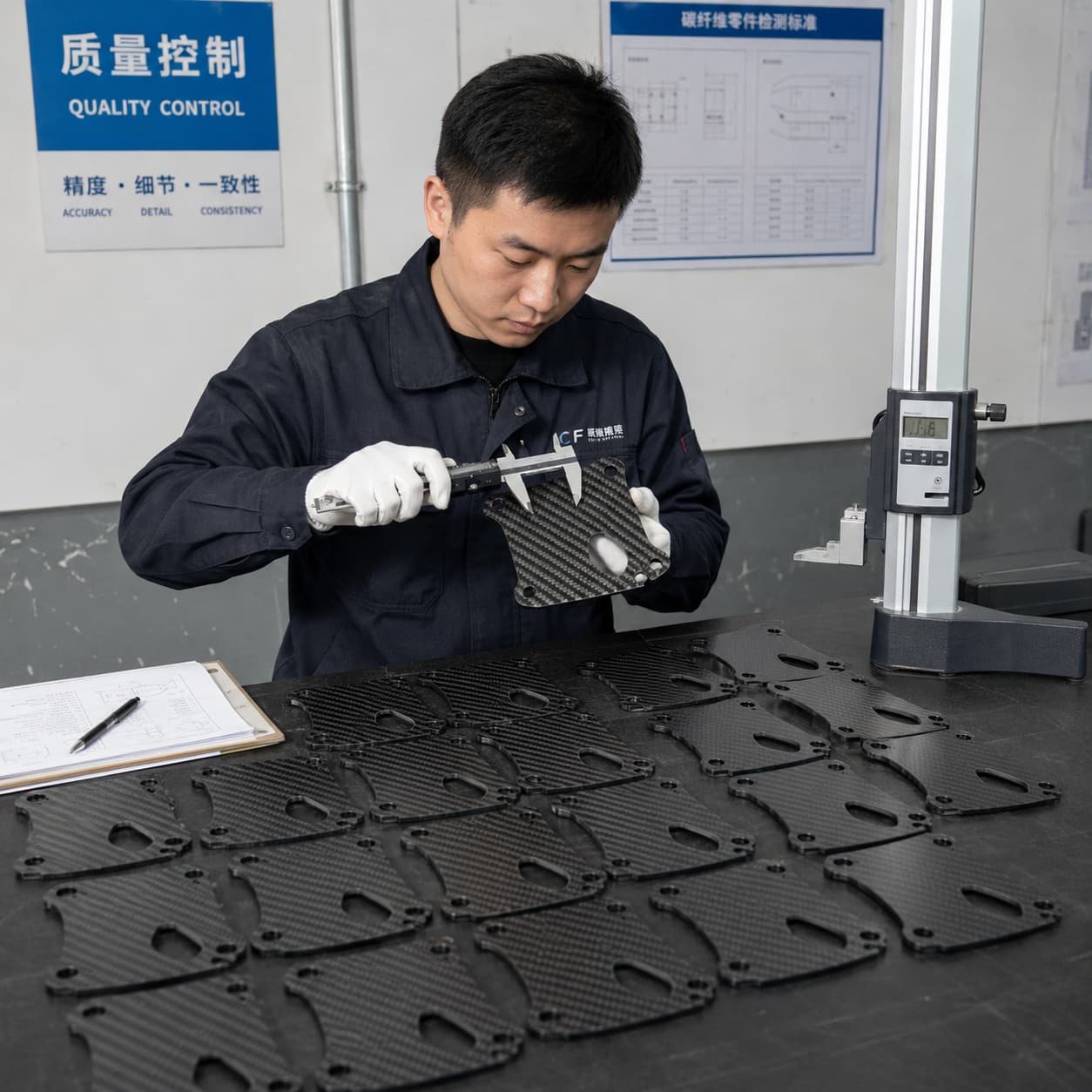

After machining, parts can be cleaned, deburred, manually finished and inspected according to the drawing. Checks focus on critical dimensions, hole locations and assembly features before assembly or packing.

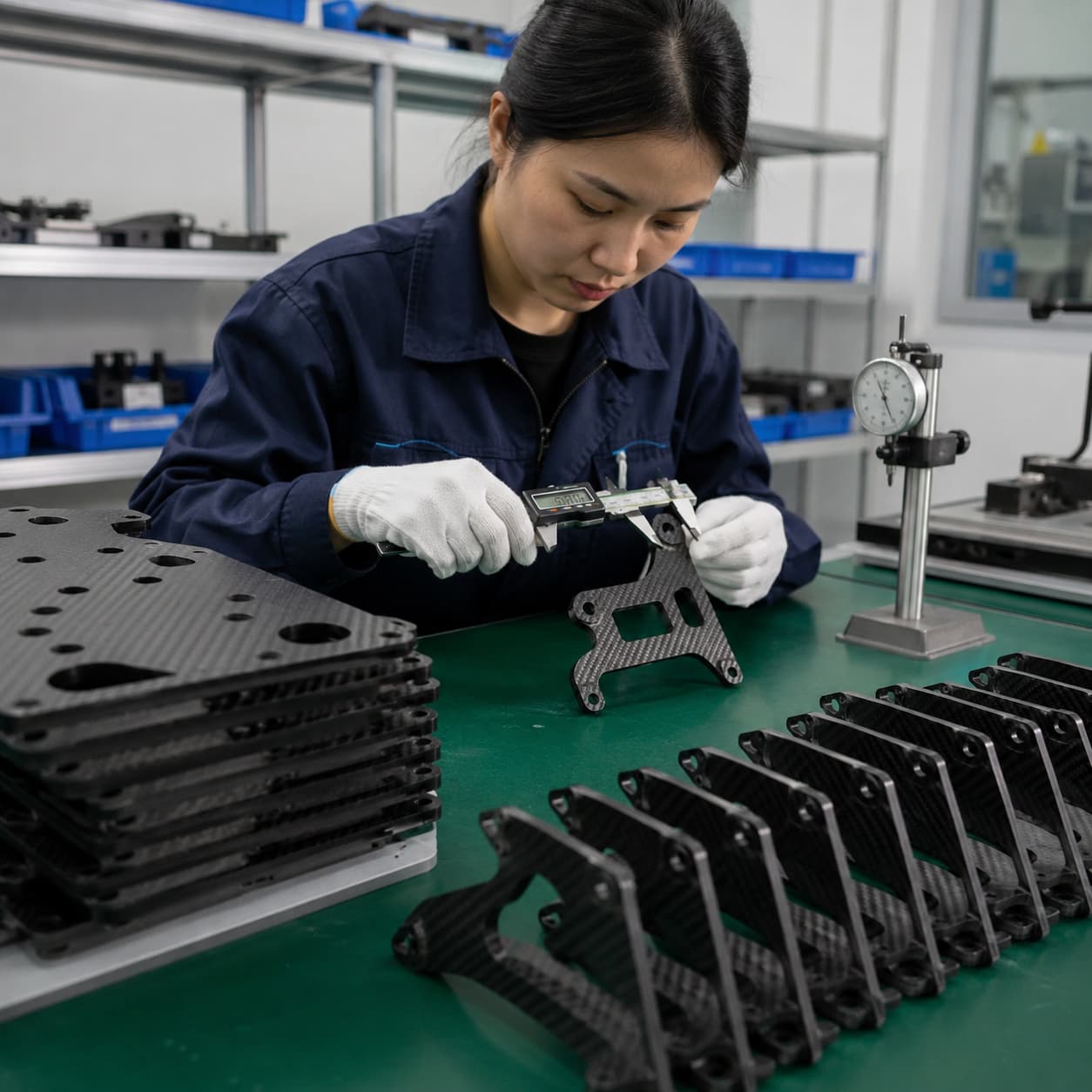

Critical Dimensions Drawing dimensions and specified tolerances. | Hole Locations Hole positions and mounting relationships. | Assembly Interfaces Features that connect to the customer's assembly. |

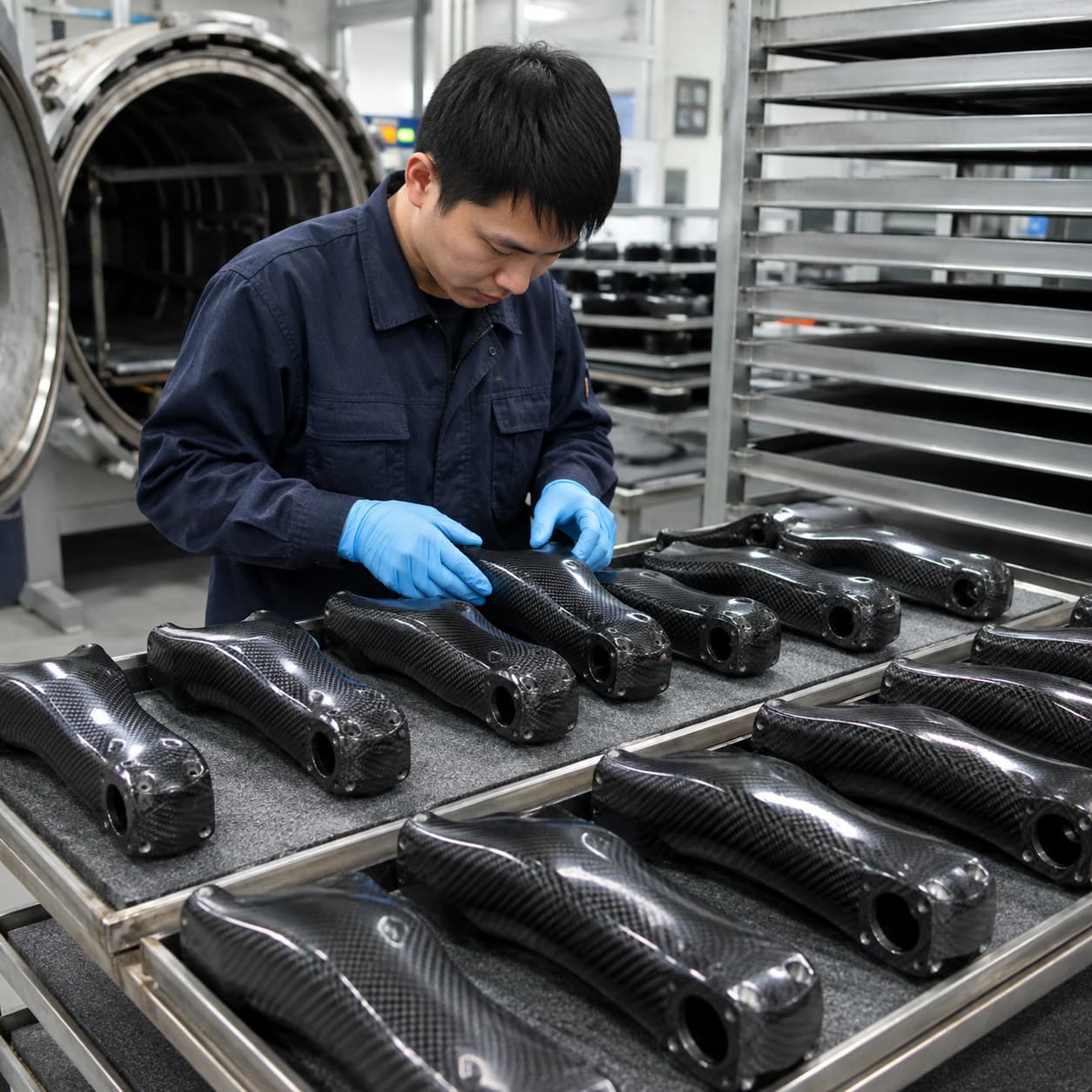

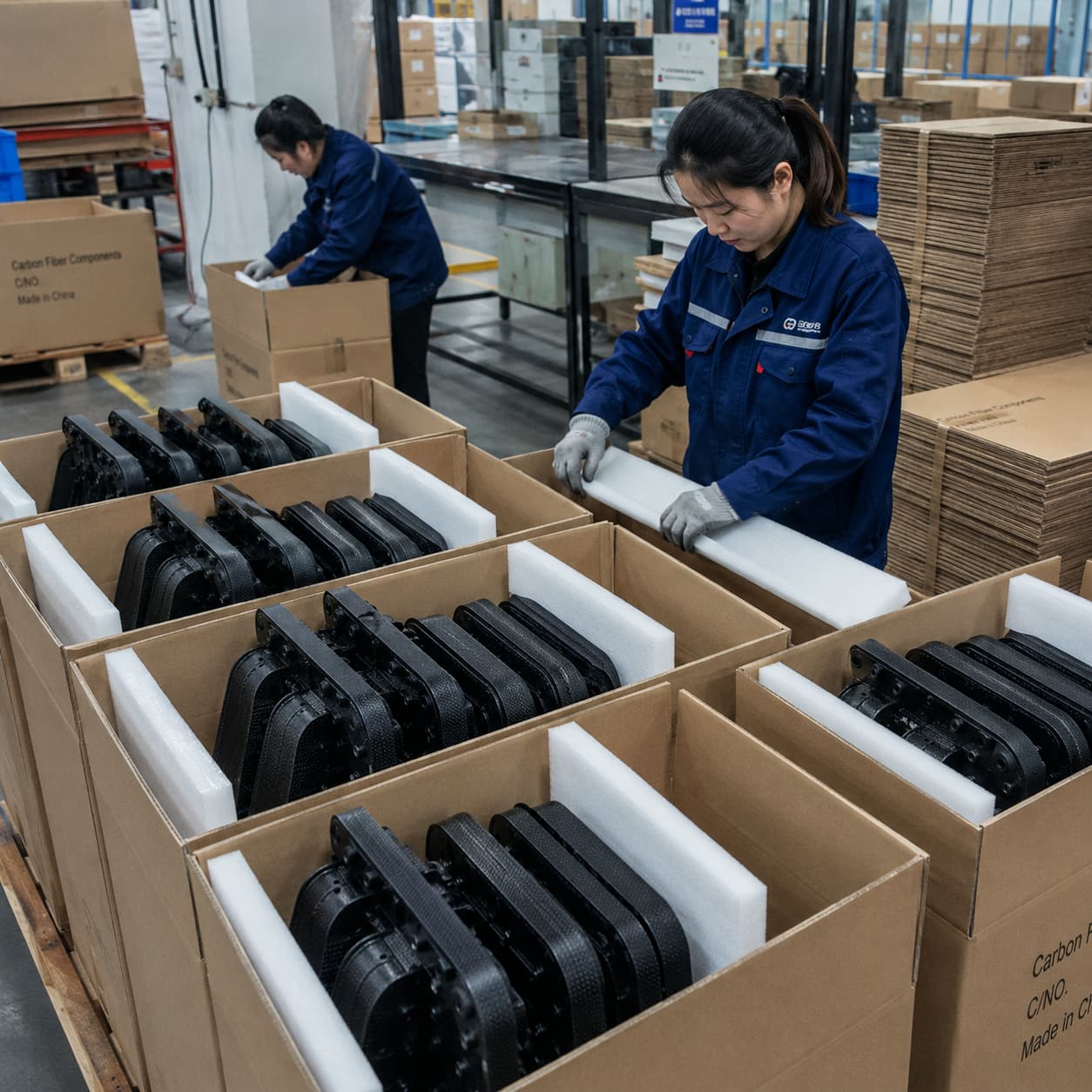

Production support covers machining, inspection, manual finishing, component assembly and protective packaging. The production route is adjusted for part geometry, quantity and end-use requirements.
Prototype Review Samples support dimensional and assembly review before batch orders. | Repeat Production Machining and assembly follow approved drawings and agreed inspection requirements. |
Custom carbon fiber components support applications where low weight and structural stiffness are design requirements.
| Robotics | Automation equipment |
| Industrial machinery | Inspection systems |
| Electronic equipment | Lightweight structures |
Email your files and project details for manufacturing review, process feedback and quotation.
| Drawing Files | 2D drawings and 3D models. STEP / STP / CAD / DXF / PDF files are welcome. |
| Part Requirements | Material and thickness, critical dimensions, hole positions, edge requirements and assembly interfaces. |
| Order Details | Quantity, prototype or batch order, application and delivery requirements. |
Use the enquiry form to leave your contact information and project details. Drawings and technical files can be sent by email.
Customer drawings and technical specifications are handled confidentially. NDA support is available for OEM projects.
