CATEGORIESRail & Mounting Component Examples

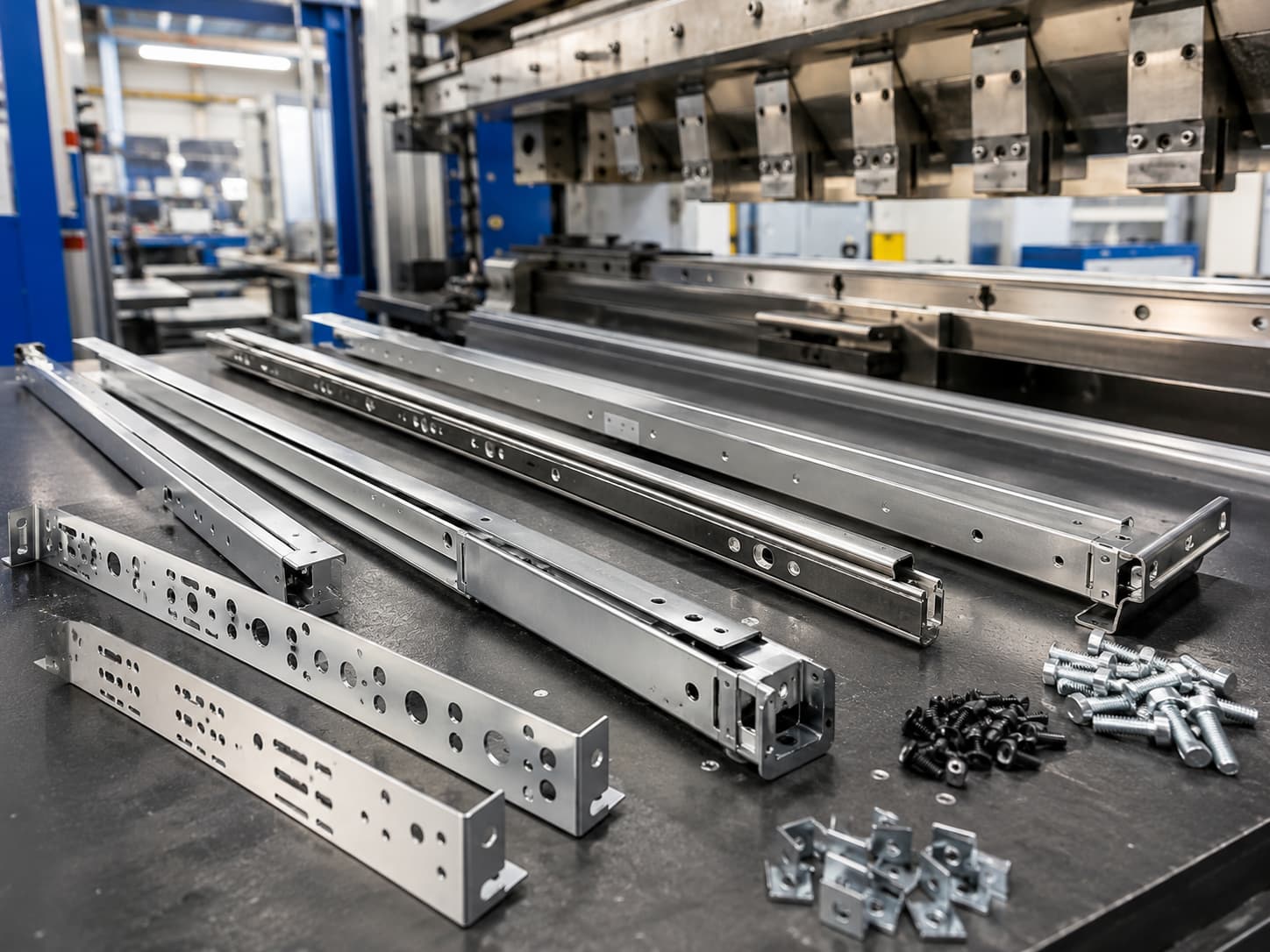

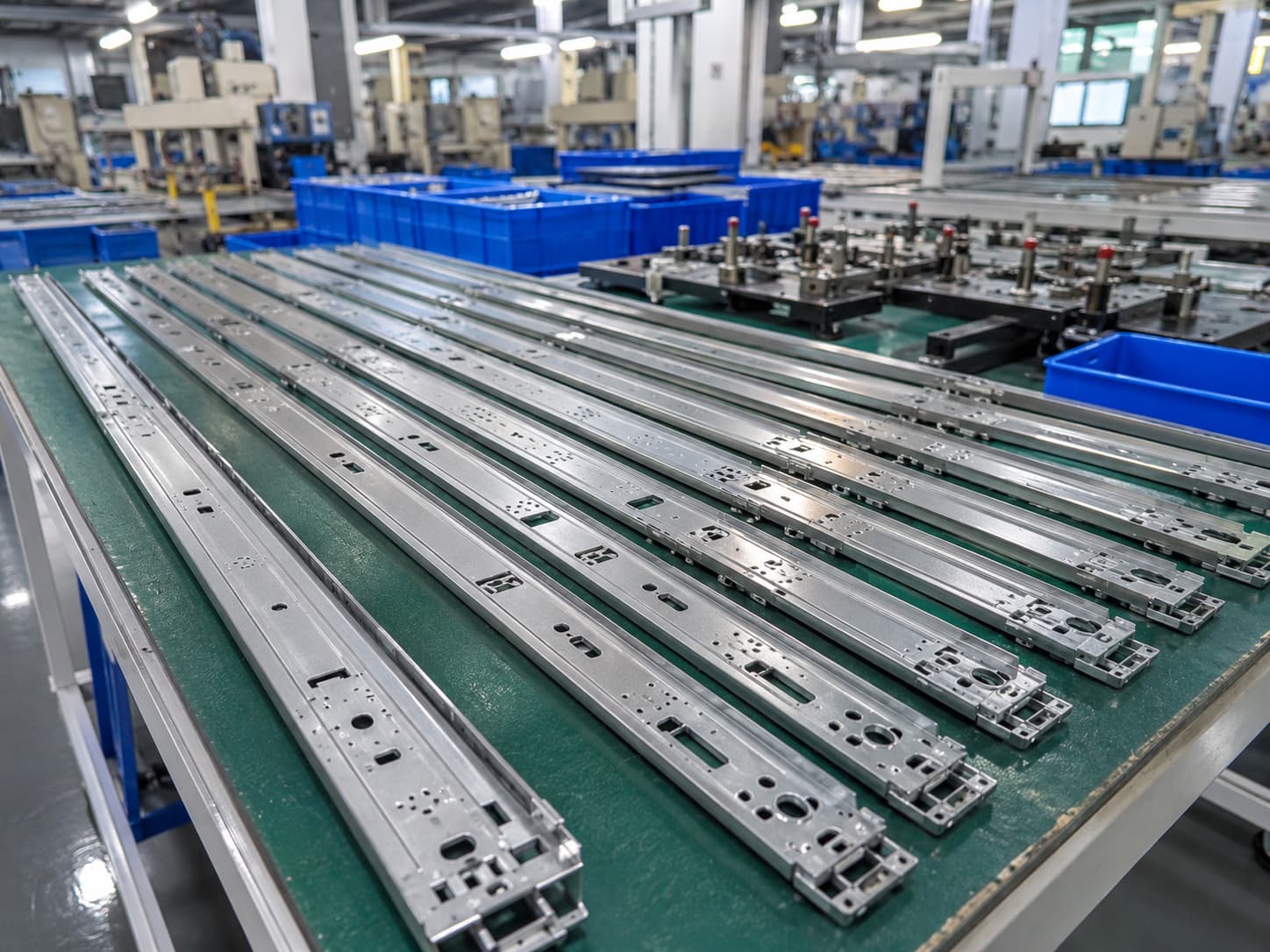

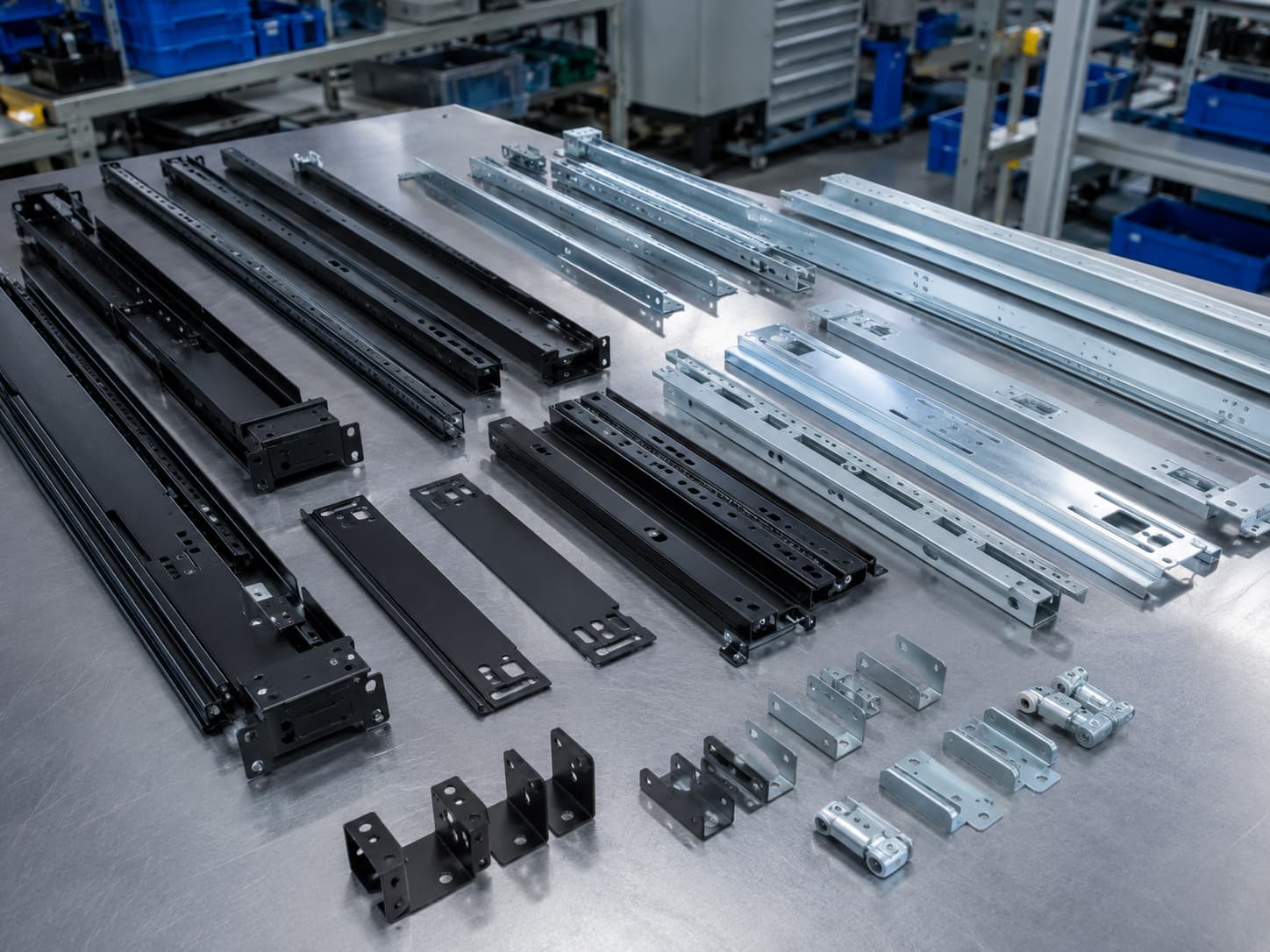

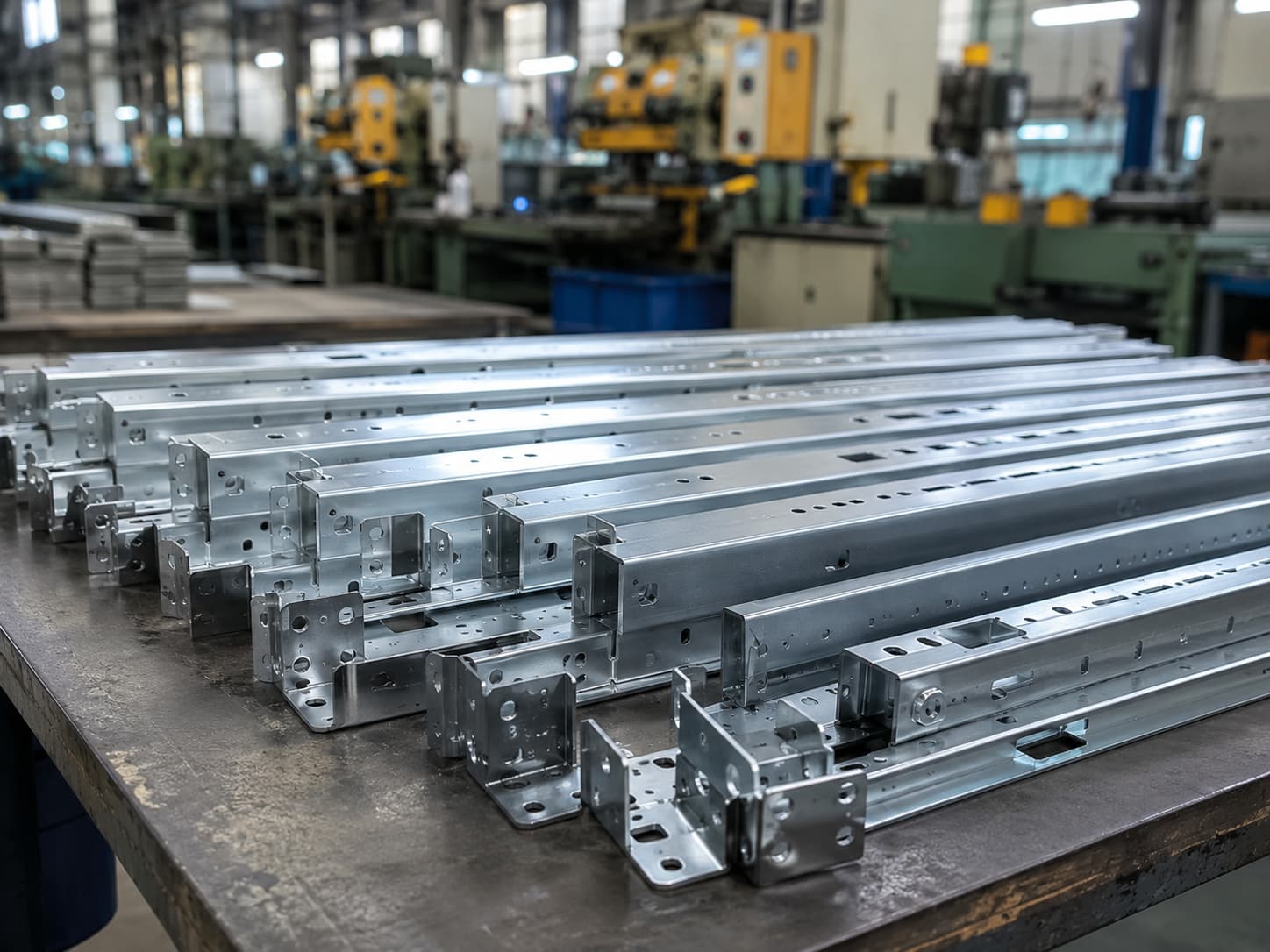

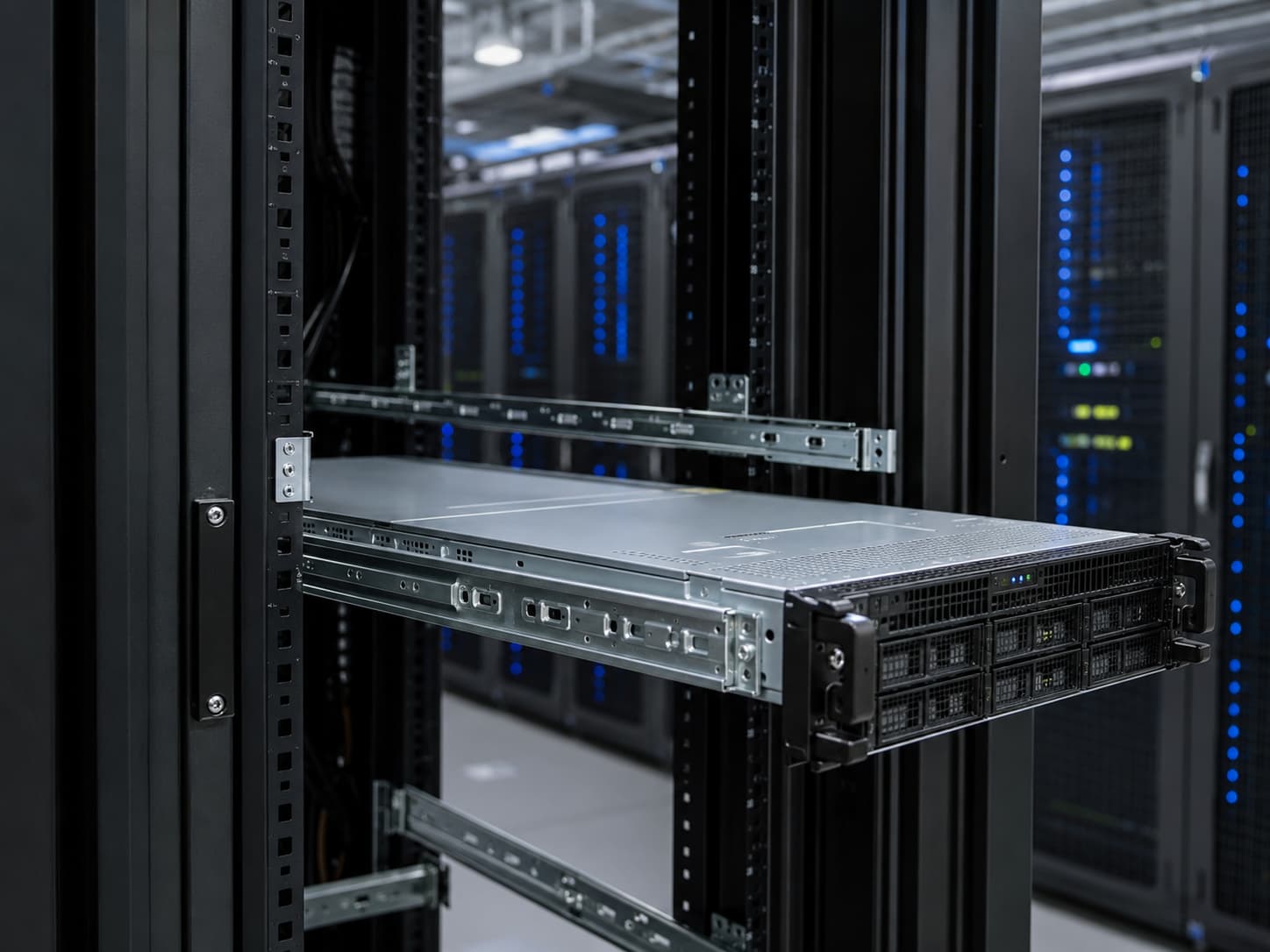

Hongming Sheng manufactures custom rack server mounting rails, guide rails, support brackets, and sheet metal structural parts for AI servers, data center hardware, industrial equipment, and rackmount systems.
Drawing-Based Rail Manufacturing
Send your drawings, 3D files, or sample details. Our engineers can review structure, material, tolerances, and assembly requirements before quotation and production.
Email: info@hms1688.com
Request Rack Rail Quote| Rack Server Mounting Rails | Server Chassis Guide Rails |
| AI Server Support Brackets | Data Center Rack Hardware |
| Sliding & Fixed Rail Sheet Metal Parts | Custom Stamped & Bent Rail Structures |

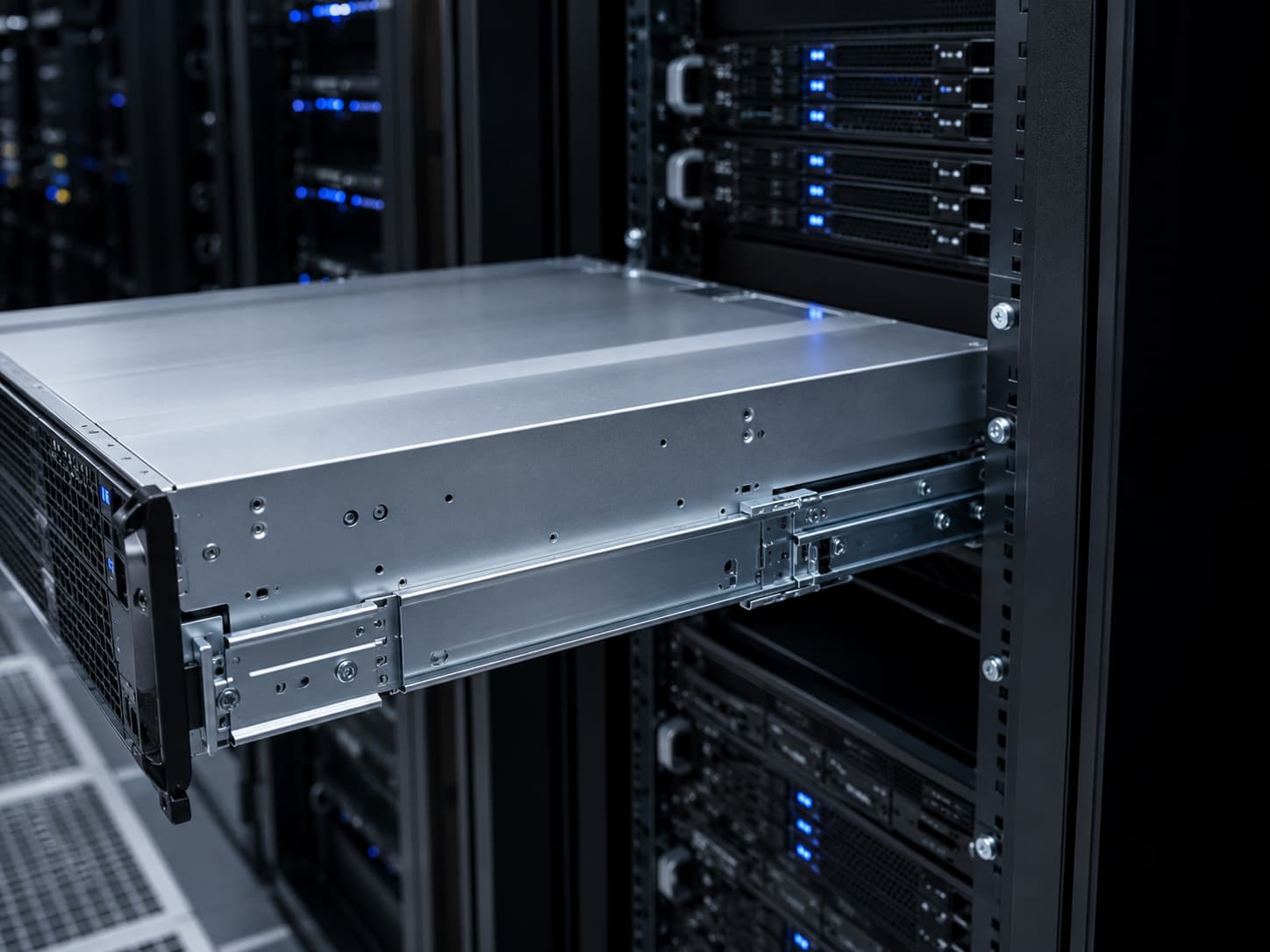

Rail geometry, hole positions, load support, and assembly fit affect chassis installation and movement. These requirements should be reviewed together with the rack and server interfaces.
| 01 | Mounting Interfaces Rack dimensions, chassis mounting points, hole patterns, and fastening requirements. |
| 02 | Rail Geometry Rail length, formed profiles, clearances, critical dimensions, and tolerances. |
| 03 | Load & Movement Expected chassis weight, support locations, fixed or sliding arrangement, and required travel where applicable. |
| 04 | Assembly & Finish Riveted connections, hardware positions, coating requirements, and agreed functional checks. |

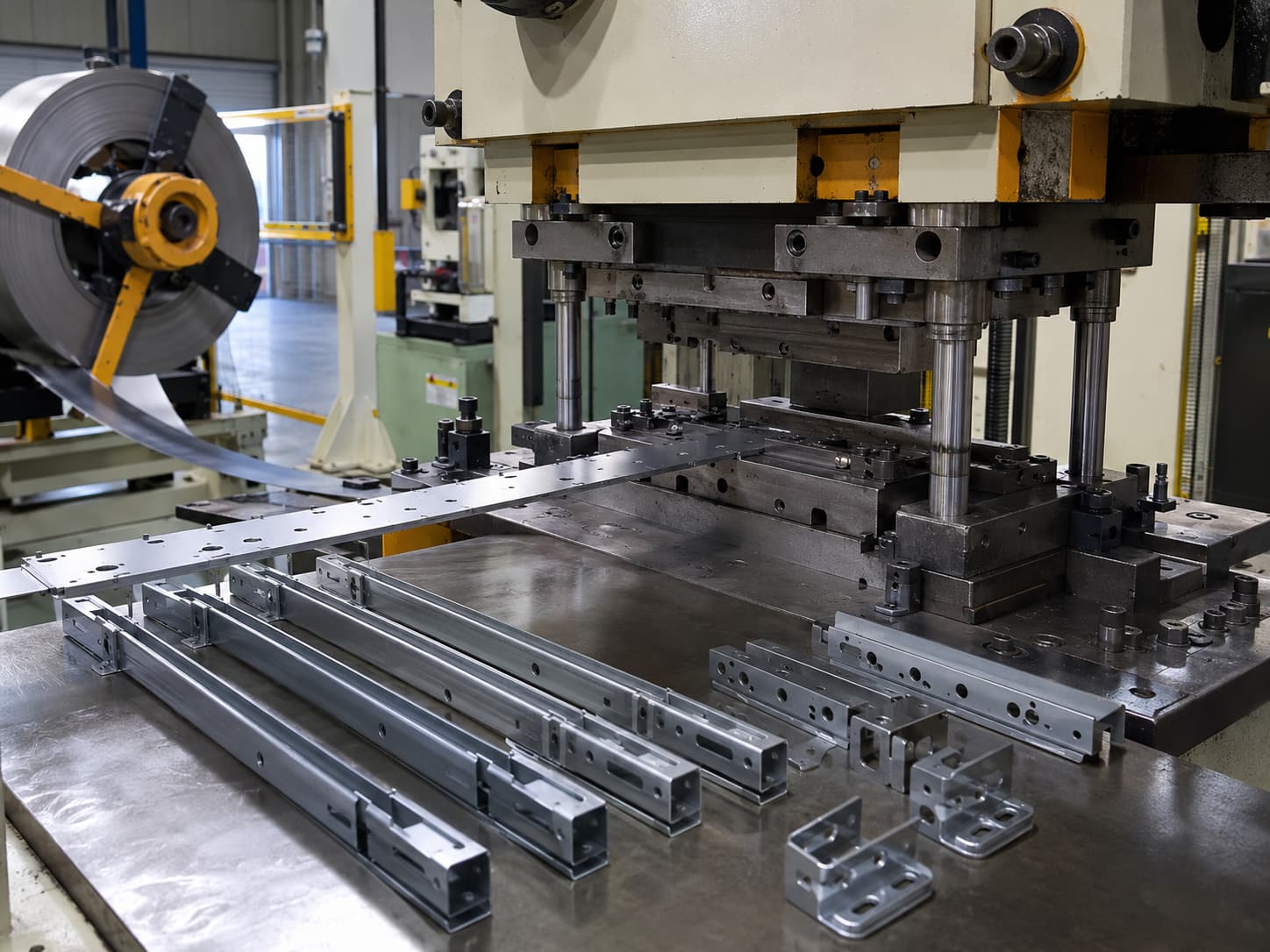

| Metal Stamping | Stamped rail components for high-volume production. |
| Laser Cutting | Custom rail profiles, openings, and mounting features. |
| CNC Bending | Formed rail geometry and supporting sheet metal structures. |
| Feature Processing | Punching, tapping, countersinking, and PEM fastener installation. |

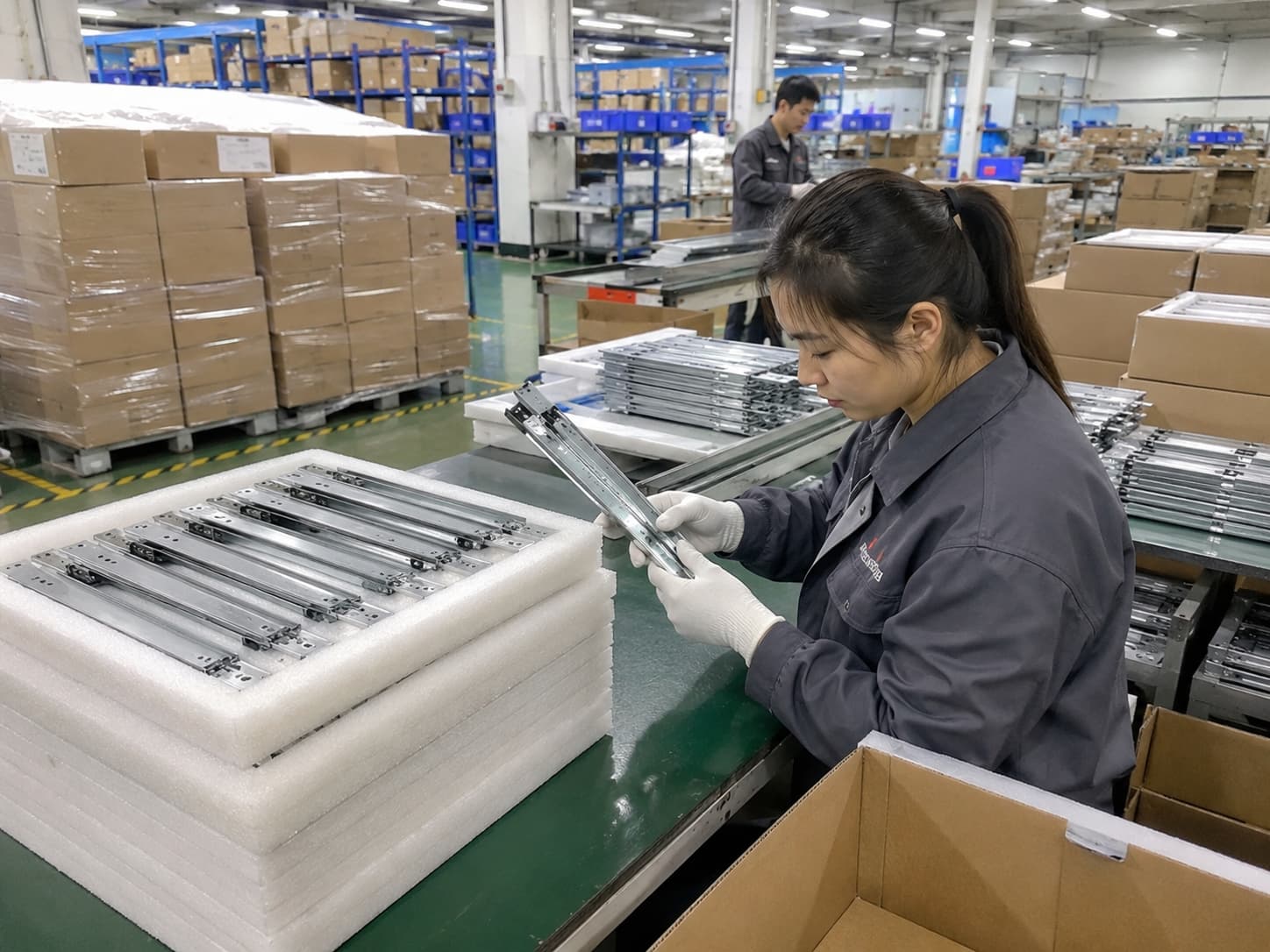

| Assembly | Riveting, component assembly, and functional checking according to project requirements. |
| Surface Finishing | Zinc plating, powder coating, black coating, and other specified treatments. |
| Material Options Cold rolled steel, galvanized steel, stainless steel, aluminum, and other sheet metal materials. | Finish Options Zinc plating, nickel plating, powder coating, black coating, anodizing, brushing, and passivation. |
Material and finish suitability are reviewed against the drawing, operating environment, and assembly interfaces.
| AI server rack systems | GPU server chassis |
| Data center cabinets | Rackmount enclosures |
| Telecom equipment racks | Industrial control cabinets |
| Power supply rack modules | Electronic equipment frames |
We support custom manufacturing from prototype development to mass production, combining stamping, sheet metal fabrication, finishing, and assembly. Engineering feedback before quotation helps clarify the production scope.

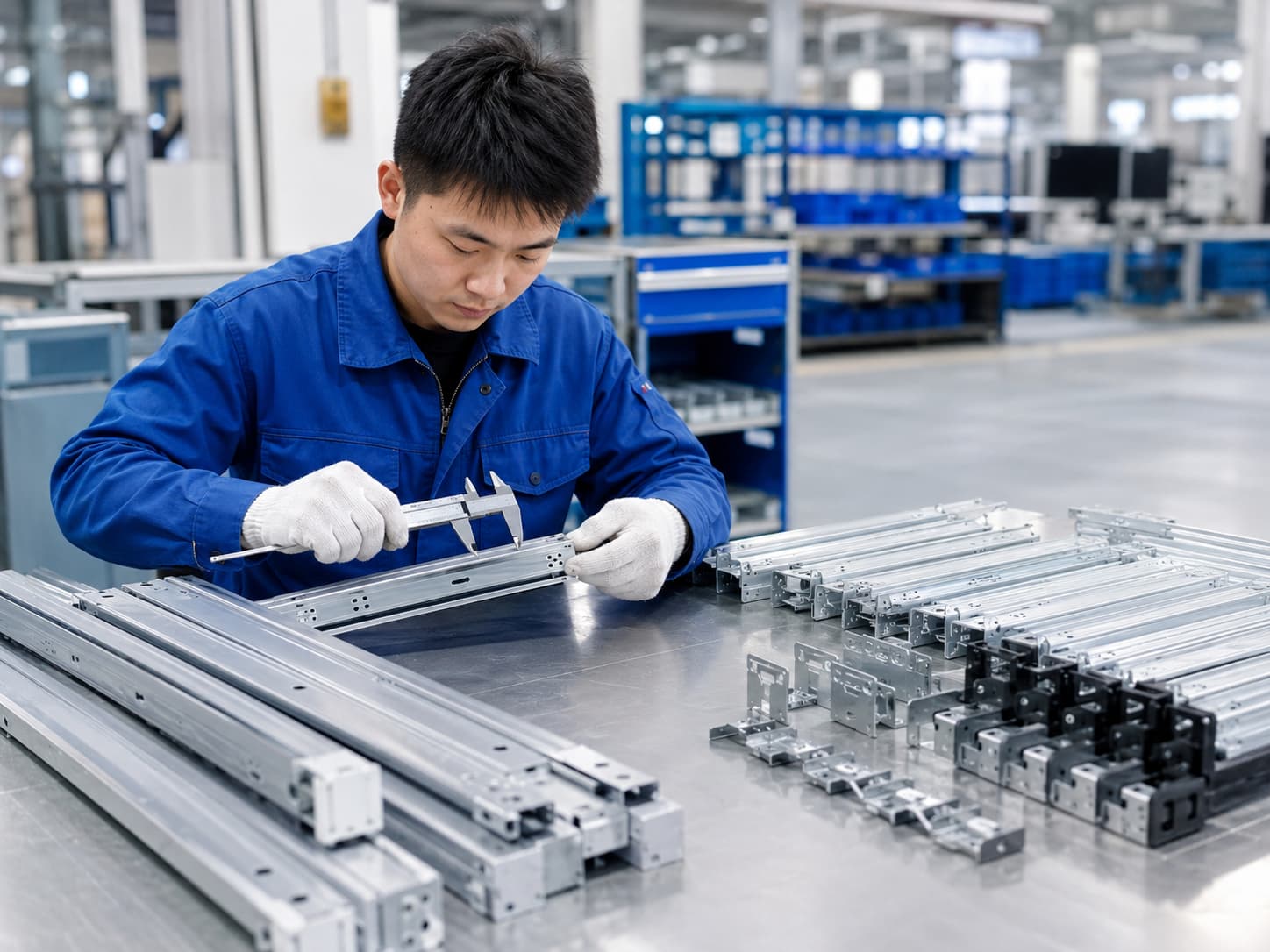

Critical dimensions, hole positions, assembly fit, surface appearance, and agreed functional requirements can be checked to support consistency across repeat orders.
Send Your Rail or Bracket Requirements
Please provide drawings or 3D files, material, thickness, quantity, finish, critical tolerances, mounting dimensions, and load or movement requirements.
Email: info@hms1688.com
Request Rail Feedback & QuoteSend technical files by email. Use the inquiry form to leave contact information and project details.
Customer drawings, samples, and technical specifications are handled confidentially. NDA support is available for OEM projects.
Contact us and just send us your drawing (SolidWorks,ProE,CAD,PDF,DXF...)
