CATEGORIESMatch the Cooler to Your Heat Sources and Available Space
Hongming Sheng manufactures custom heatpipe heat sink assemblies for power electronics, embedded equipment, and industrial cooling projects. We support circular and block-type fin structures with copper heatpipe arrangements tailored to your equipment layout.
Share your drawings, heat source locations, and installation requirements. Our engineers can review fin configuration, heatpipe routing, baseplate geometry, and mounting details before quotation.

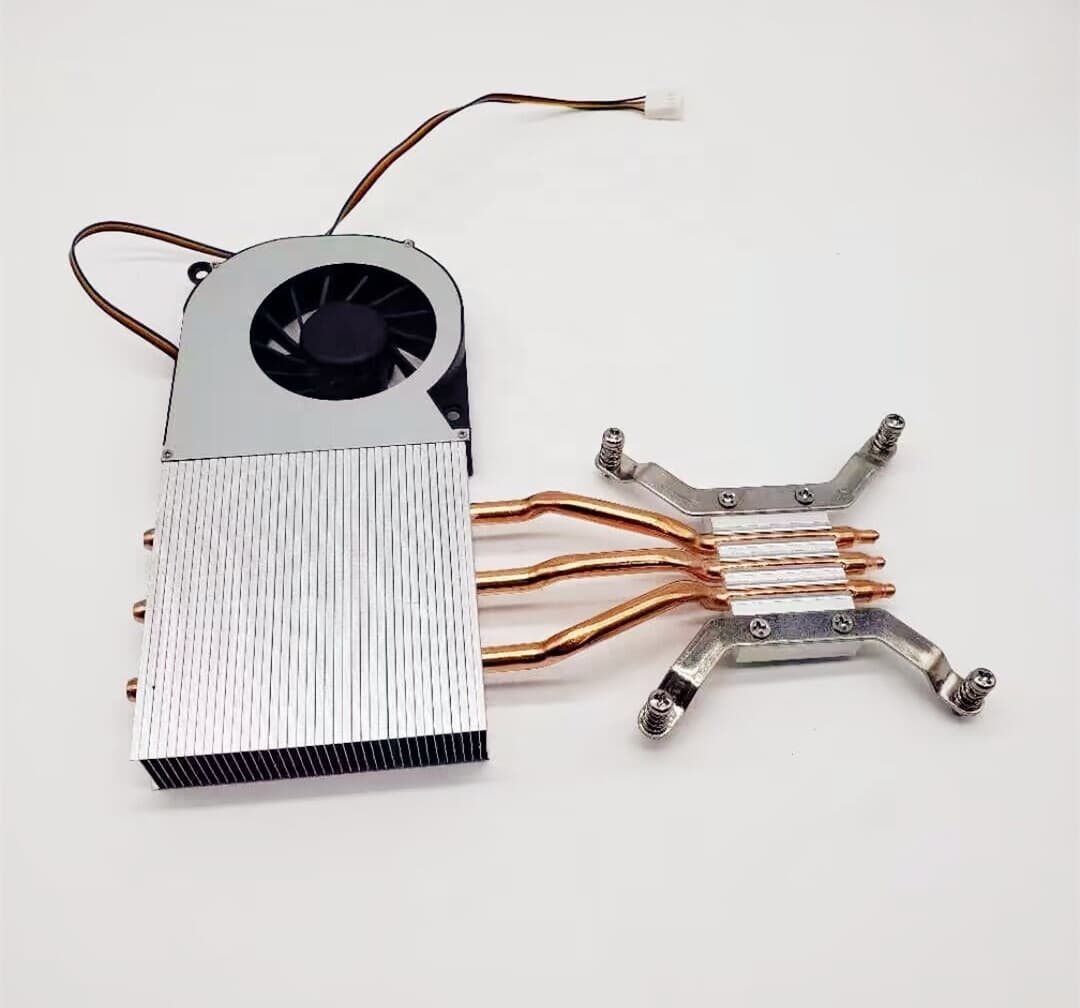

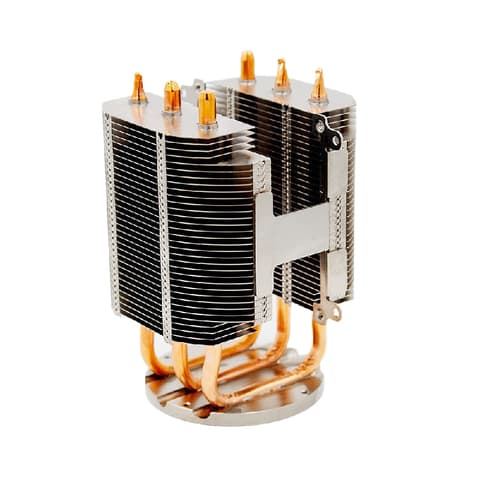

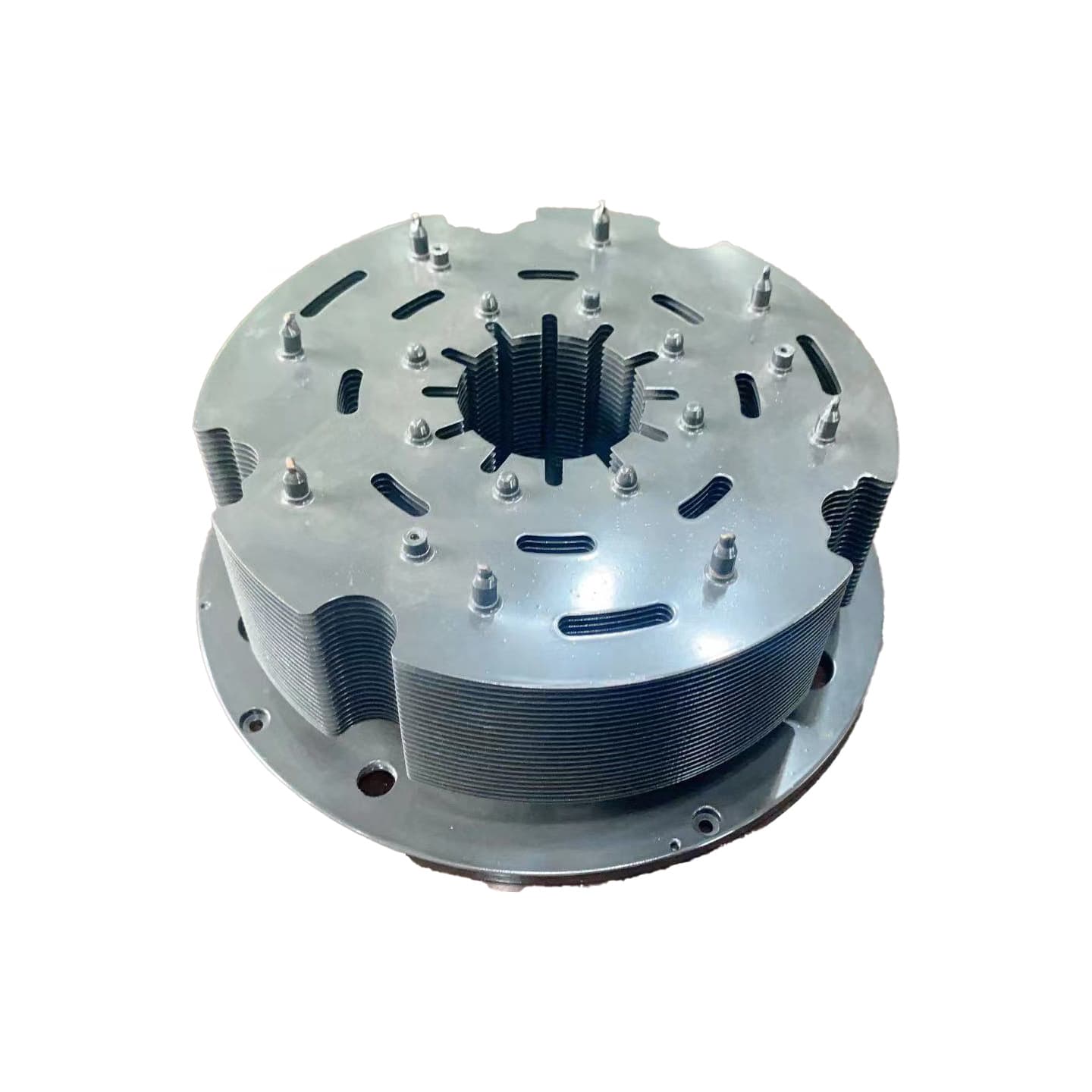

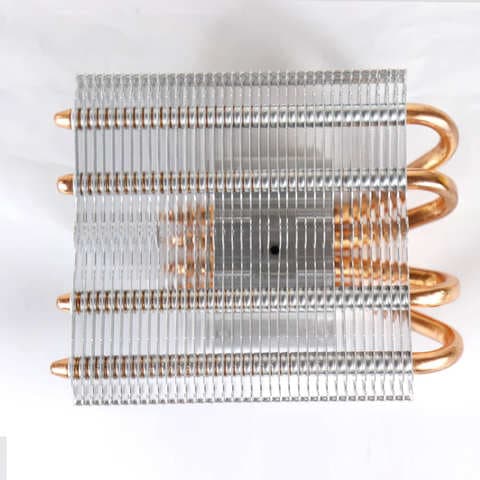

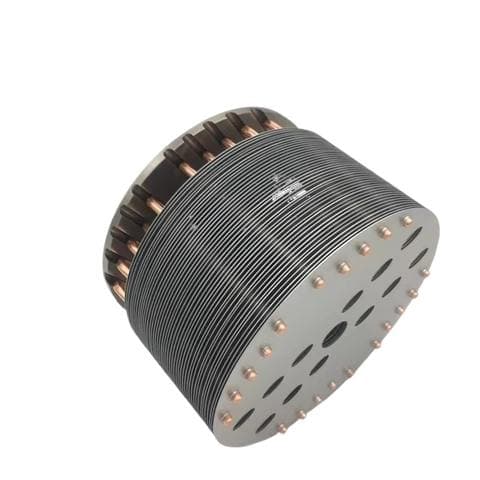

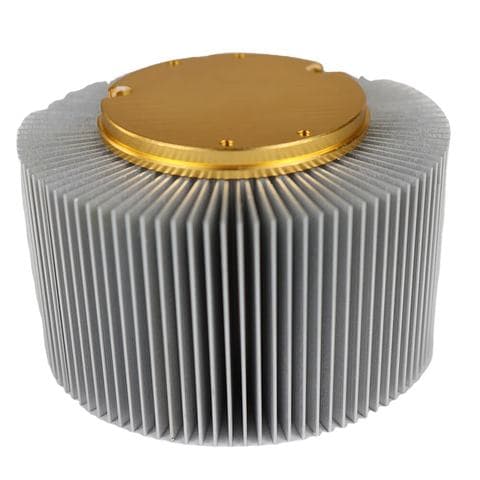

Sample configurations illustrate different fin layouts and assembly forms. Final dimensions and details are defined by your project specification.
| Design Area | Customization Scope |
|---|---|
| Fin Structure | Circular fin profiles or rectangular fin blocks, with dimensions and arrangement reviewed against the available installation space. |
| Heatpipe Integration | Copper heatpipe routing, flattening, and press-fit integration according to the approved assembly design. |
| Base & Mounting | CNC-machined baseplate geometry, mounting interfaces, and component clearances matched to your equipment drawings. |
| Surface Requirements | Surface treatment options reviewed for corrosion protection, appearance, and specified contact areas. |
Power & Industrial Equipment: Power conversion equipment, motor drivers, laser cooling modules, and optical driver assemblies.
Compact Electronic Systems: Embedded computing hardware, control devices, high-brightness LED modules, and assemblies with limited cooling space.
1. Confirm the Layout
Review heat source positions, overall dimensions, mounting points, and surrounding component clearances.
2. Define the Cooling Requirements
Provide heat load, ambient temperature, airflow conditions, installation orientation, and allowable component temperature. Agree on performance targets and any test requirements before production.
3. Approve the Assembly Details
Confirm fin configuration, heatpipe routing, baseplate features, finish, and inspection requirements before releasing the design for manufacturing.
Send your 2D drawings, 3D files, or a dimensioned layout together with thermal requirements, order quantity, and target delivery date. If the design is still in development, include the equipment layout and key mounting dimensions for review.
Email: info@hms1688.com
Customer drawings, CAD files, and project specifications are handled confidentially. NDA support is available for OEM projects.
Contact us and just send us your drawing (SolidWorks,ProE,CAD,PDF,DXF...)
