Precision Metal Welding and Fabrication Services for Custom Components

CUSTOM COMPONENTS / OEM FABRICATION

From individual metal parts to finished welded assemblies.

Hongming Sheng combines sheet metal fabrication, TIG/MIG welding and CNC processing to manufacture custom components based on your drawings.

We review the complete assembly, including joint details, mounting dimensions, visible surfaces and finishing needs.

info@hms1688.com Discuss Your Fabrication Project

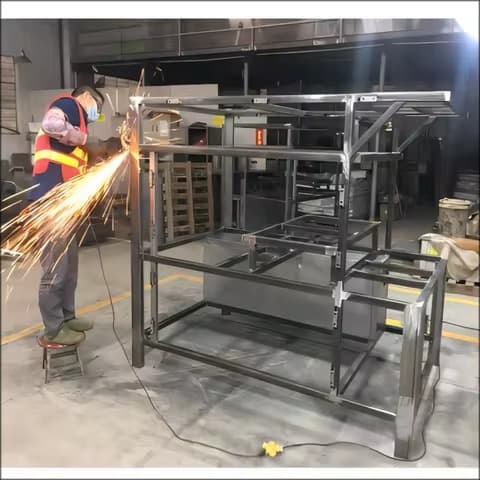

Custom metal welding and fabrication example

Cut & Form Sheet metal preparation

Weld & Assemble TIG/MIG processing

Machine & Finish Functional interfaces

Inspect & Supply Agreed specifications

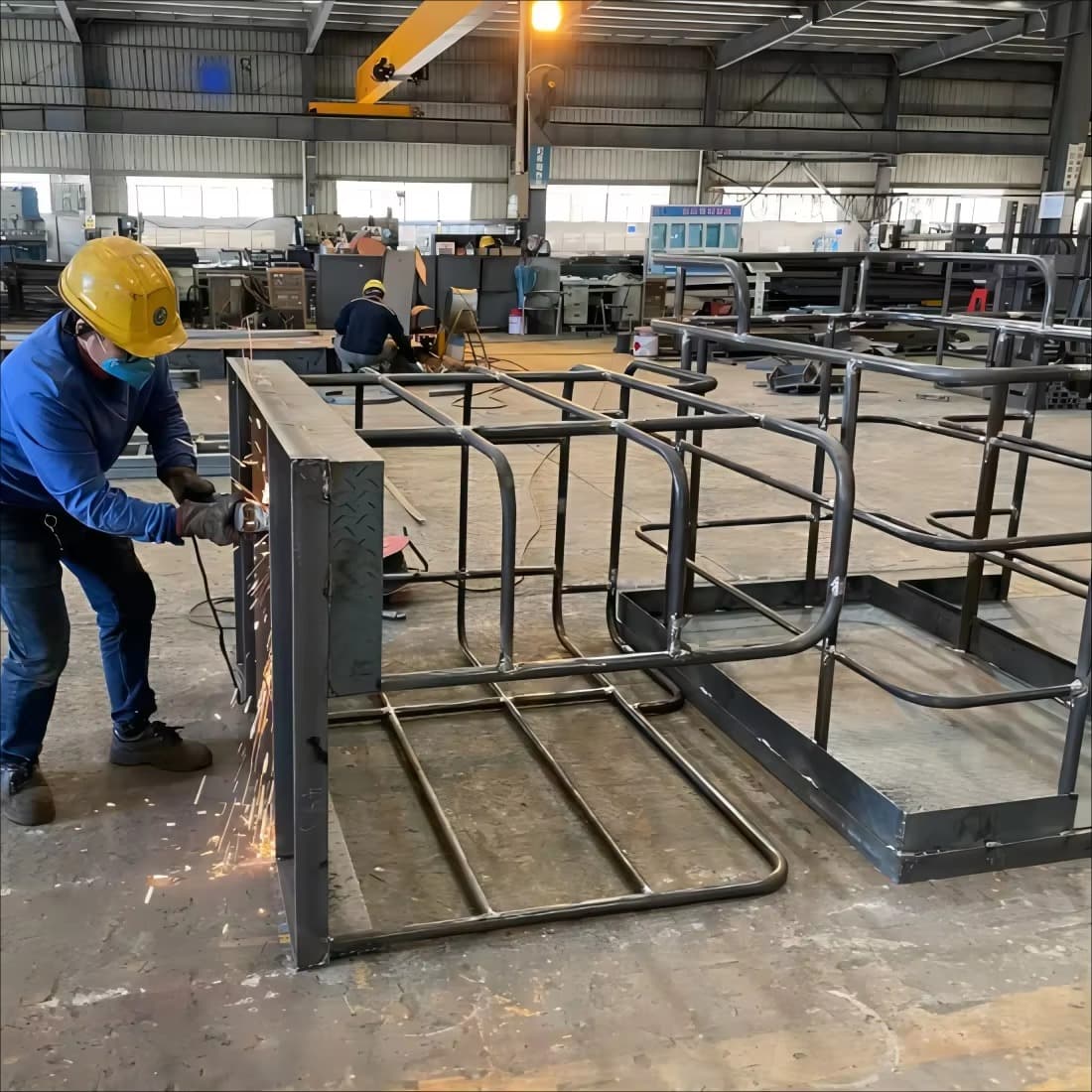

Welding Details & Fabrication Examples

Explore weld details, fabricated frames and production examples. Each project is reviewed according to its material, geometry, quantity and assembly requirements.

Scroll horizontally to view more examples.

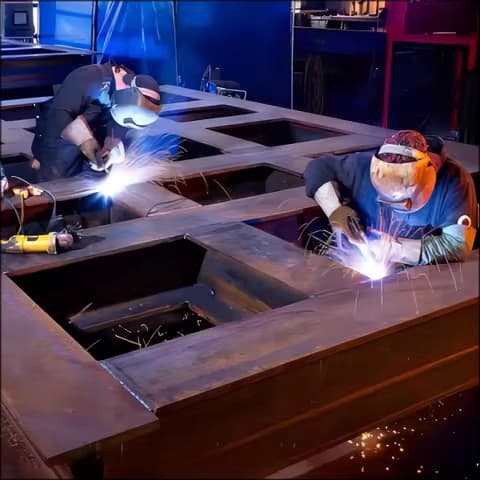

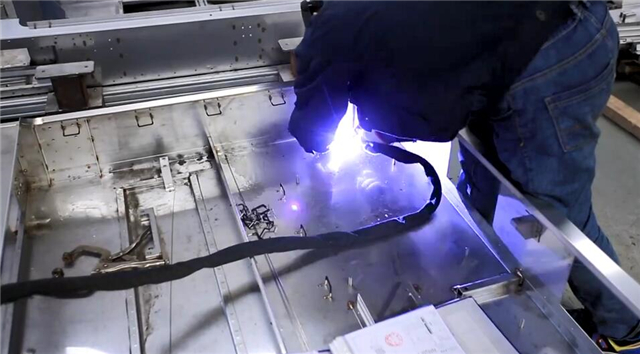

Welded metal joint and surface appearance examples

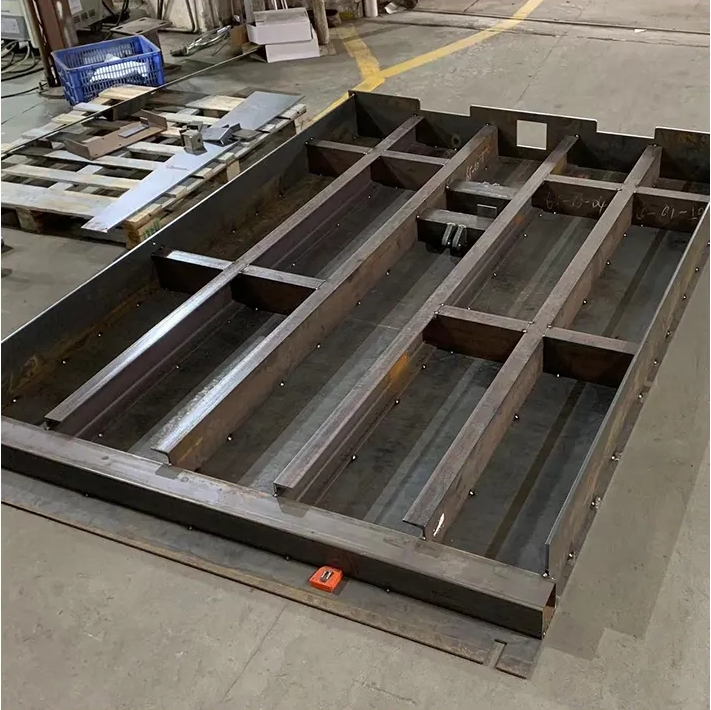

Surface processing on a fabricated metal structure

One Manufacturing Plan for the Whole Assembly

Sheet Metal Fabrication: Laser cutting, bending and suitable stamping operations produce the individual parts. Material thickness, geometry and order volume guide process selection.
Custom Welding: TIG/MIG welding is reviewed around the specified material, joint configuration and access. Fixtures and assembly sequencing are planned for the component.
CNC Processing: Drilling, tapping and machining can be included for mounting holes, threaded features and mating surfaces requiring additional processing.
Finishing & Assembly: Grinding, brushing, polishing, coating and hardware installation are evaluated according to material, appearance and functional requirements.

Process Video & Inspection Planning

Agree on the Important Features

Material grade, thickness and documentation needs
Weld locations, joint details and acceptance requirements
Overall dimensions, datums and mounting interfaces
Visible surfaces, edges and coating requirements
Specified tests and inspection reports

Inspection coverage, testing scope and achievable tolerances are confirmed during project review.

Built Around Your Equipment

Industrial Housings

Enclosures, equipment covers and panels with defined mounting, access and appearance requirements.

Frames & Supports

Machine structures, brackets and pipe assemblies produced to customer drawings.

Automotive Hardware

Fabricated brackets and welded subassemblies with specified geometry and installation interfaces.

Electronics & Robotics

Metal housings, mounting structures and custom components for equipment integration.

Start with Your Drawing

Email your CAD files or drawings with material, thickness, quantity, weld requirements and surface finish. Mark critical dimensions and include any testing needs.

We support prototypes, small batches and repeat orders. Lead time and inspection scope are confirmed after review. Use the inquiry form for a project summary and send drawing files directly by email.

info@hms1688.com Request a Fabrication Quote

Confidential OEM cooperation. Customer drawings, CAD models, samples and technical information are handled confidentially. NDA agreements are available.
