Prototyping Sheet Metal Parts: Tips and Techniques
Product content

Custom sheet metal prototyping

Build a Prototype for Your Design Review

Check fit and assembly before moving into production. Hongming Sheng manufactures sheet metal samples from your drawing and project requirements.

Send your drawing for review info@hms1688.com Get a Prototype Quote

Email CAD or PDF files directly.

What Should This Sample Check?

Fit Do holes, cutouts and mounting features match the mating parts?
Assembly Can components and fasteners be installed and accessed as intended?
Finish Are visible surfaces, edges and coating requirements clearly defined?

Manufacturing Options

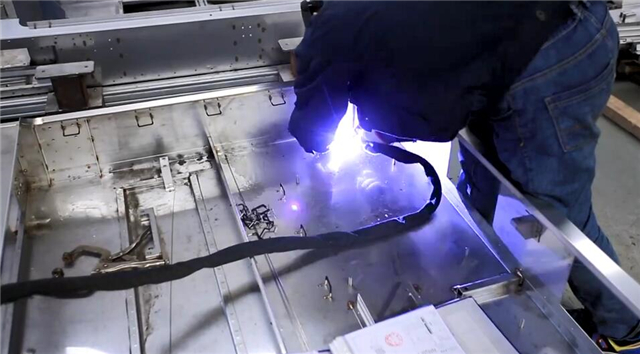

Laser cutting, CNC bending and TIG/MIG welding, with secondary machining, finishing and assembly where required.

Three Steps to Get Started

Send Your Brief

Share the drawing revision, material, thickness, quantity and target date.
Confirm the Review Points

Agree on the sample purpose, manufacturing scope and critical checks.
Build, Inspect and Review

Evaluate the sample and record changes before the next production stage.

Materials and typical parts

Materials include stainless steel, aluminum, carbon steel, brass, copper and galvanized steel.

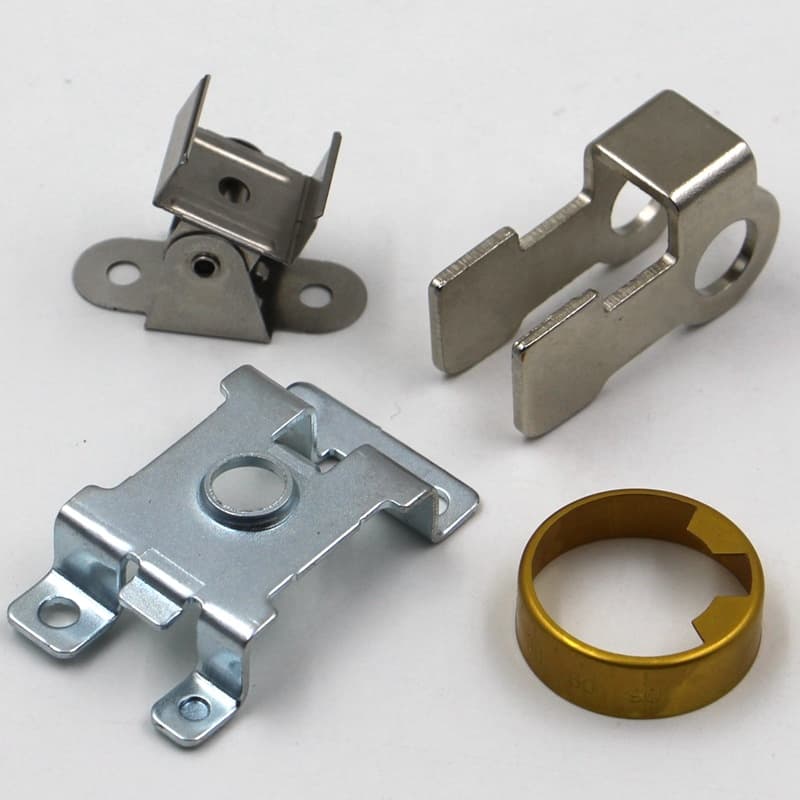

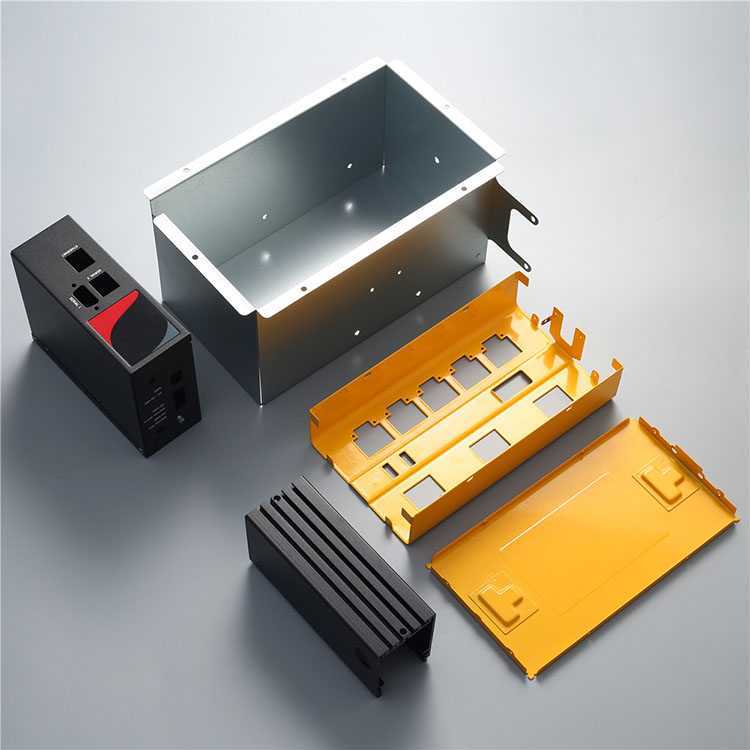

Typical parts include enclosures, equipment housings, brackets, supports and automation components.

Bends and production changes

Bend requirements should be reviewed with material thickness and tooling. Identify any changes between the sample and production plan so the relevant checks can be repeated.

Ready to Discuss a Prototype?

Email your drawing, material, quantity and the features you want to validate.

Contact Hongming Sheng info@hms1688.com Discuss My Prototype

The inquiry form is for your project summary and contact details. Please email technical files separately.

NDA support: Customer drawings, CAD files, samples and project information are handled confidentially.
