IP65 stainless steel electrical enclosure waterproof SUS304 316 fabrication
Product content

Need a stainless steel box that fits your equipment? Hongming Sheng fabricates custom electrical enclosures in 304 and 316 stainless steel, from sample housings to repeat orders.

Tell us the size, installation conditions and required protection. We can review the housing, openings and mounting details with you.

EMAIL A DRAWING OR SKETCH info@hms1688.com

Get an Enclosure Quote

See the Fabrication Details

Swipe to see all four views.

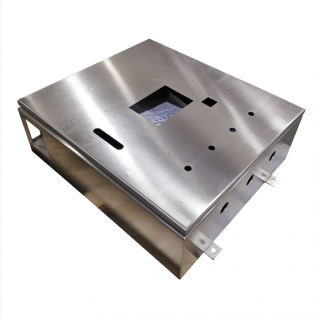

Custom enclosure panel with holes, rectangular openings and mounting tabs — 01 / Cutouts arranged for the equipment.

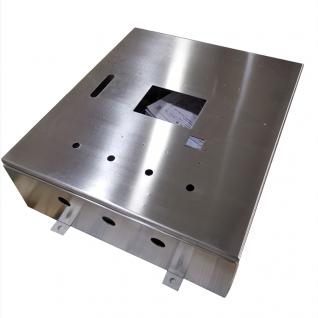

Formed enclosure viewed at an angle showing front and side openings — 02 / Housing shape and access openings.

Inside an enclosure with internal supports and a perimeter seal — 03 / Internal supports and perimeter seal.

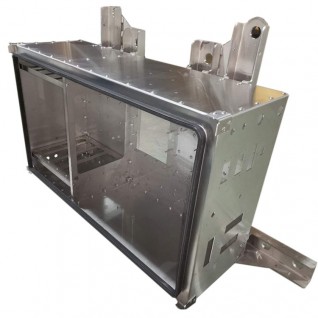

Enclosure body showing its gasketed frame and external mounting brackets — 04 / Frame seal and installation brackets.

Start with Three Details

How much space is needed? Send width, height and depth, plus the space needed for internal components and wiring access.
Where will it be installed? Describe dust, water, salt exposure and cleaning conditions so the grade and sealing requirements can be reviewed.
What needs to fit? Mark doors, control openings, cable entries, mounting plates and brackets on your sketch or drawing.

Which Stainless Steel Grade?

304

Often considered for general industrial use. Check its suitability for the actual location and cleaning routine.

316

Contains molybdenum for improved resistance to localized chloride corrosion. Share salt, chemical and temperature exposure when requesting this grade.

Surface condition, fabrication and maintenance also affect corrosion resistance.

What Does IP65 Mean?

Dust-tight and protected against water jets under specified testing conditions. Immersion protection is a separate requirement.

The final door, gasket, welds, windows and cable-entry fittings must work as a complete enclosure. Tell us the required test evidence when requesting a quote.

Customize the Housing

Wall thickness reviewed for size, load and stiffness
Door access, hinges, latches and gasket arrangement
Panel cutouts, cable entries and mounting or grounding connection positions
Brushed, mirror-polished or powder-coated surfaces

Our fabrication support covers cutting, bending, welding and finishing. Dimensions, fit and appearance are checked against agreed specifications; additional testing and reports are confirmed for the project.

Before You Send an Inquiry

Can I start without CAD files?

Yes. Photos, a sketch and basic dimensions can begin the discussion. The manufacturing details need to be confirmed before production. Available CAD formats include STEP/STP, IGES/IGS, PDF and DWG/DXF.

Can you make a sample first?

Prototype and production quantities can be reviewed together. Timing depends on the design, material, finish and inspection requirements; send your target date for evaluation.

Have an Enclosure in Mind?

Email your drawing or sketch with the size, grade, finish, quantity and IP requirements. Add any cutout details and installation conditions.

SEND FILES DIRECTLY TO info@hms1688.com

Request Project Review

Attach files by email. Use the form for your project summary and contact information.

Your design stays confidential. We protect customer drawings, samples and project information. An NDA can be arranged for OEM cooperation.
